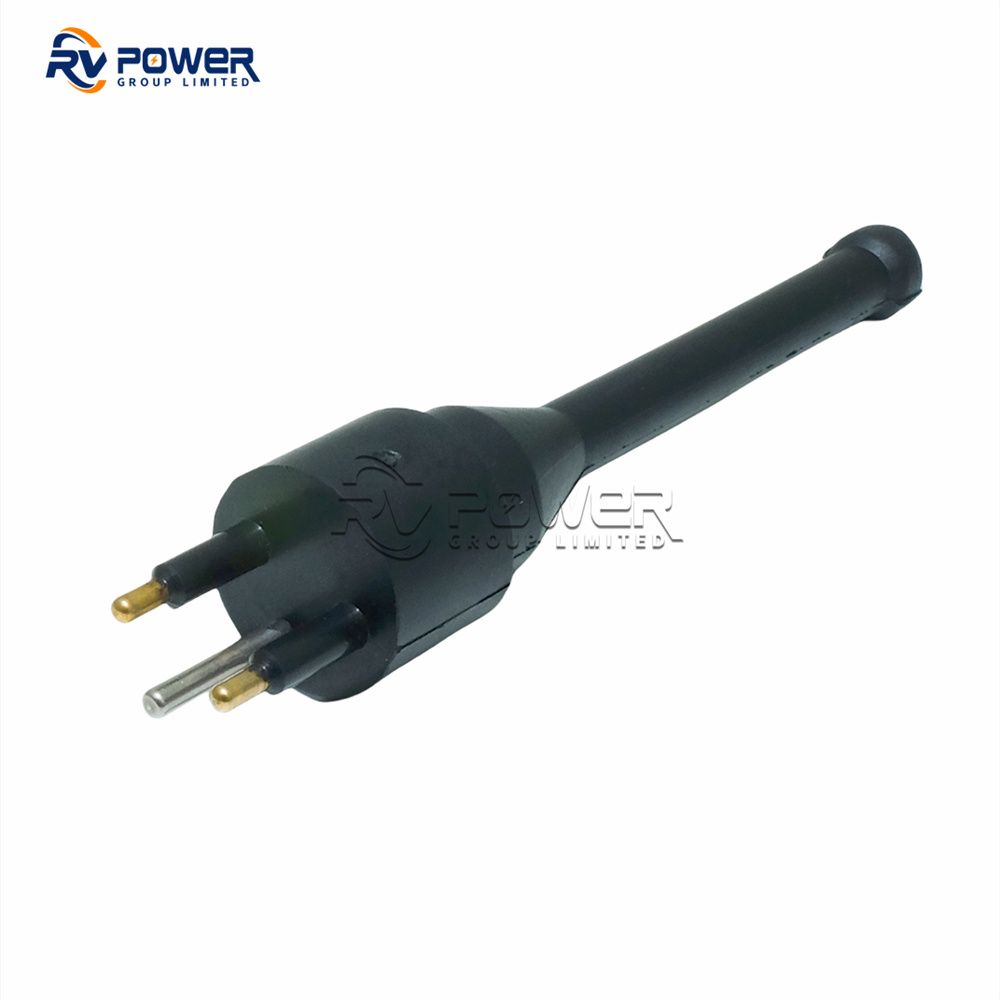

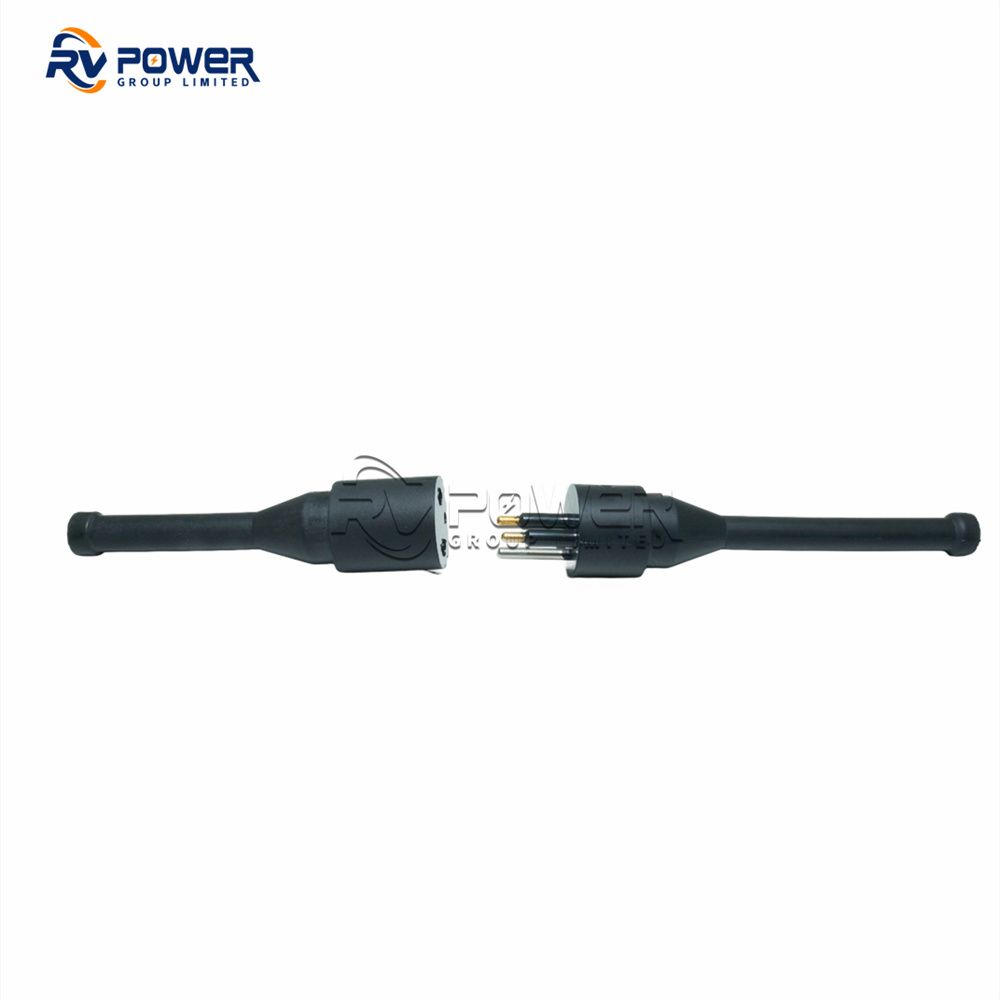

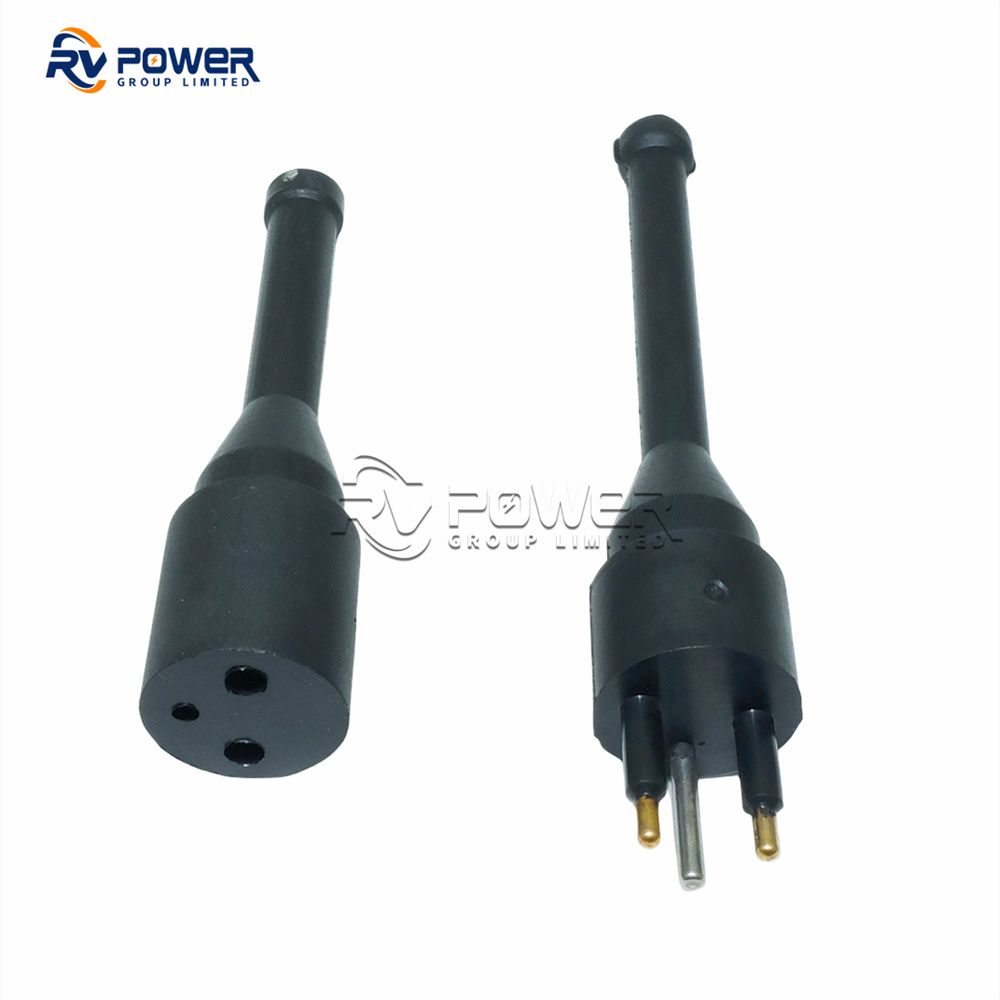

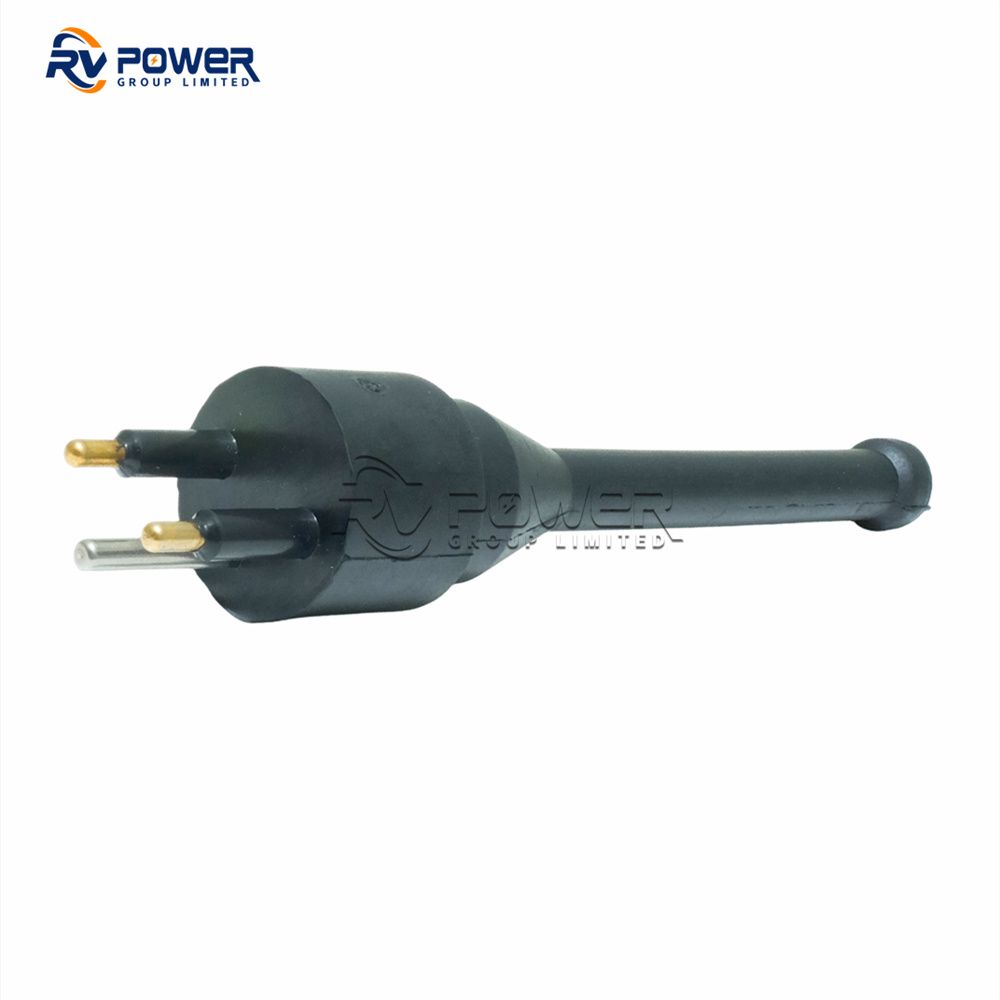

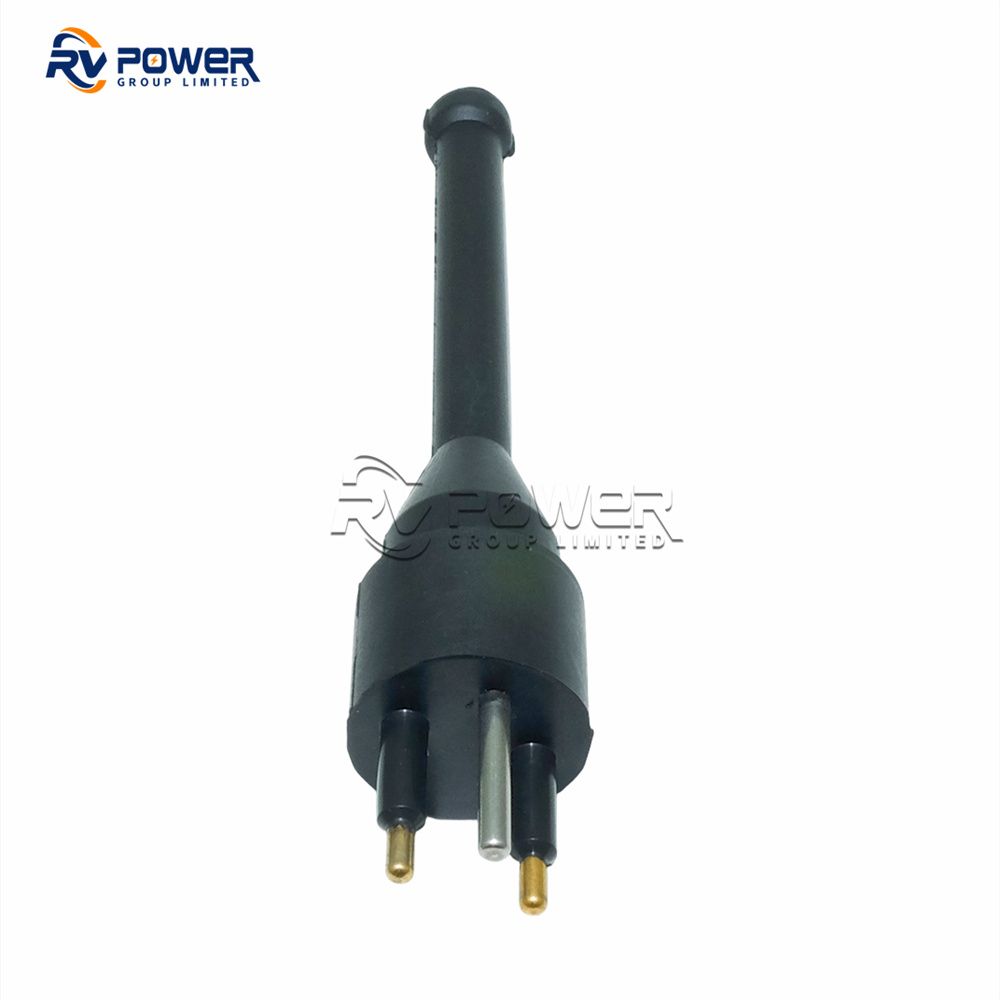

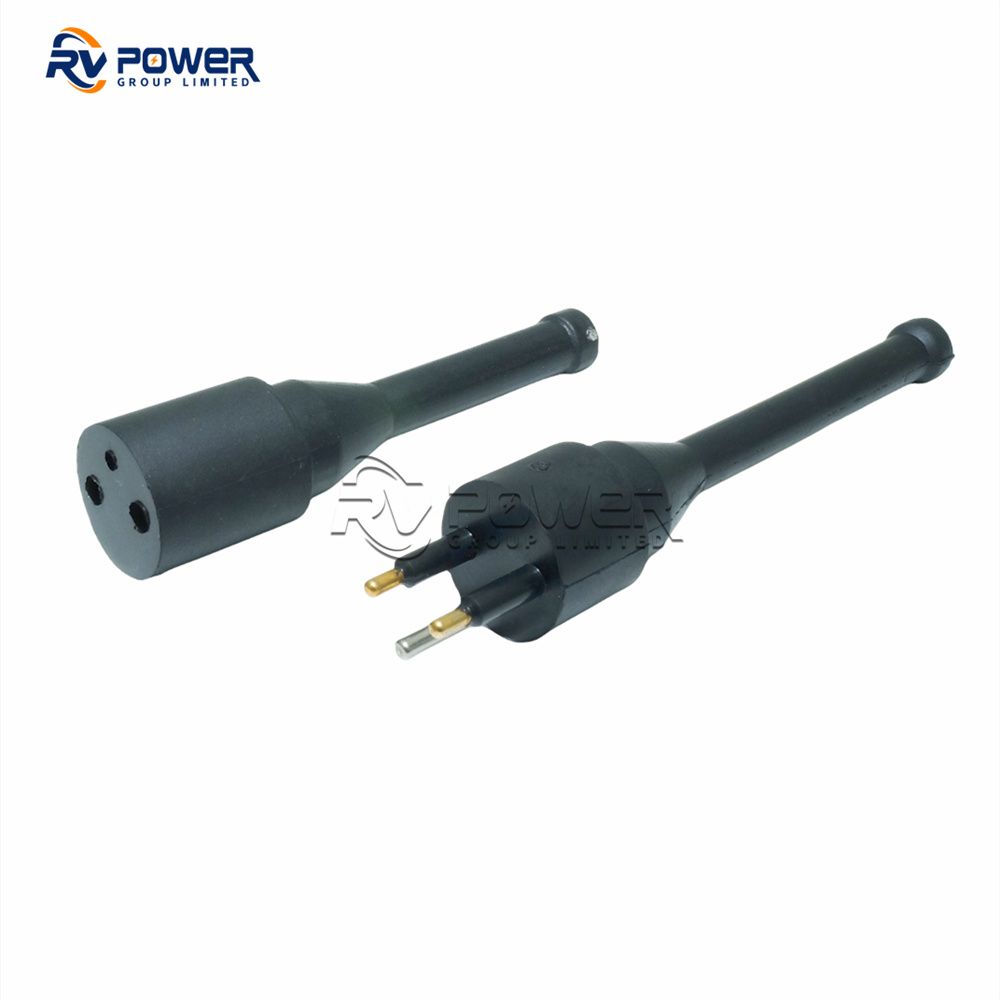

DC2M Underwater Circular Series Connector Dummy Plug 2 Pin Contact male

DC2M Underwater Circular Series Connector Dummy Plug 2 Pin Contact male Applications These industry standard connectors can be found in almost every market relating to the marine industry. Transition zone and OBC seismic telemetry systems Underwater video systems and lighting Remote Operated Vehicle systems Nuclear pool lighting Oceanographic instrumentation Theme park rides, marinas and fountain lighting Options Mil Spec. gold plated contacts Direct molding to selected polyurethane cables Stainless steel, NiAlBr, and titanium bulkhead bodies and locking sleeves. Aluminum is available on the Micro and BH16 series Customer specified cable and pigtail lengths Non-standard bulkhead threads and lengths Certified pressure testing to full ocean depth Customized harness cables

Send Inquiry
Description

The DC2M is a SubConn® Circular Male Dummy Cap / Protective Plug designed to protect the unmated male pin face of 2-contact Circular series connectors from seawater ingress, biofouling, sediment contamination, and mechanical damage during storage, deck handling, and deployment. Rated to 1,400 Bar (20,300 psi) mated equivalent pressure, the DC2M is pressure-balanced and can be deployed on any unmated Circular connector face without depth limitation.

2-Contact Circular Dummy Cap | 1,400 Bar Pressure Balanced | Protects 2-Pin Female Face | SubConn® Standard Compatible

Key Design Features

  • Circular Male Dummy Cap — protects the male pin face of 2-contact SubConn® Circular series connectors
  • Pressure-balanced design — rated to 1,400 Bar / 20,300 psi; can be deployed at any ocean depth without flooding or damage to the protected connector face
  • 500+ deployment cycles — cap mate/demate rated for the full service life of the connector it protects
  • Chloroprene rubber body — chemical resistance to seawater, hydraulic oil, and biofouling agents; −4 °C to +60 °C
  • SubConn® Circular standard geometry — identical locking sleeve and keyway geometry to SubConn® Circular DCs; full field interchangeability
  • Colour-coded snap ring — enables rapid visual identification of cap vs. live connector during deck operations

Specifications

Parameter Specification
Protected Connector Face 2-contact Circular Female (pin or socket face)
Equivalent Pressure Rating 1,400 Bar / 20,300 psi (pressure balanced)
Open-Face Pressure 800 Bar / 11,600 psi
Deployment Cycles > 500
Operating Temperature (water) −4 °C to +60 °C
Operating Temperature (air) −40 °C to +60 °C
Body Material Chloroprene rubber
Snap Ring Stainless steel AISI 302 (colour-coded)
Locking Sleeve POM or stainless steel
Compatible Connectors 2-contact SubConn® Circular IL, BH, OM series (Female face)

Typical Applications

  • Deck storage protection — caps unmated 2-pin Circular connector faces during ROV deck operations, reducing contamination-related connection failures
  • Long-term storage — protects gold-plated contact faces from chloride corrosion, dust, and mechanical contact damage during equipment storage and transit
  • Subsea parking — pressure-balanced dummy cap enables deployment of the cap on any unmated underwater connector face without depth limitation
  • Observatory junction boxes — protects unused port connections in multi-port subsea junction boxes and instrument frames
  • ROV tooling skids — protects connector faces on tools not deployed in a given dive

Frequently Asked Questions — DC2M

Q: What connectors does the DC2M protect?
A: The DC2M protects the male pin face of all 2-contact SubConn® Circular series connectors — including IL2F or BH2F and compatible models. The locking sleeve geometry is identical to the SubConn® Circular standard.

Q: Can the DC2M be deployed underwater with the connector?
A: Yes. The DC2M is pressure-balanced and rated to 1,400 Bar / 20,300 psi — it can be deployed at any ocean depth on an unmated connector face without flooding or damage. It is designed specifically for subsea use during ROV tooling operations where some connector faces remain unmated during the dive.

Q: How many times can the DC2M be applied and removed?
A: Rated for more than 500 application/removal cycles — matching the full mating cycle specification of the Circular connector series it protects.

Q: Does the DC2M require lubrication?
A: Light application of dielectric grease to the O-ring sealing surface is recommended, particularly for repeated deck-side application/removal cycles. After recovery from seawater, flush with fresh water and re-apply grease before storage.

Q: What is the colour coding on the DC2M snap ring for?
A: The colour-coded snap ring enables rapid visual differentiation between live connector ends and protected/capped ends during deck operations — a critical safety feature on ROV tooling skids and multi-outlet junction boxes where misconnection must be prevented.

Installation & Maintenance

  • Inspect the connector face and cap sealing surface before every application — remove debris or salt deposits that could prevent full O-ring seating
  • Apply dielectric grease to the O-ring before capping, particularly for subsea deployment
  • Verify the locking sleeve is fully engaged before deployment — a partially engaged dummy cap can flood the protected connector face under pressure
  • After recovery, flush the cap and connector face with fresh water; inspect O-rings for wear before re-use
