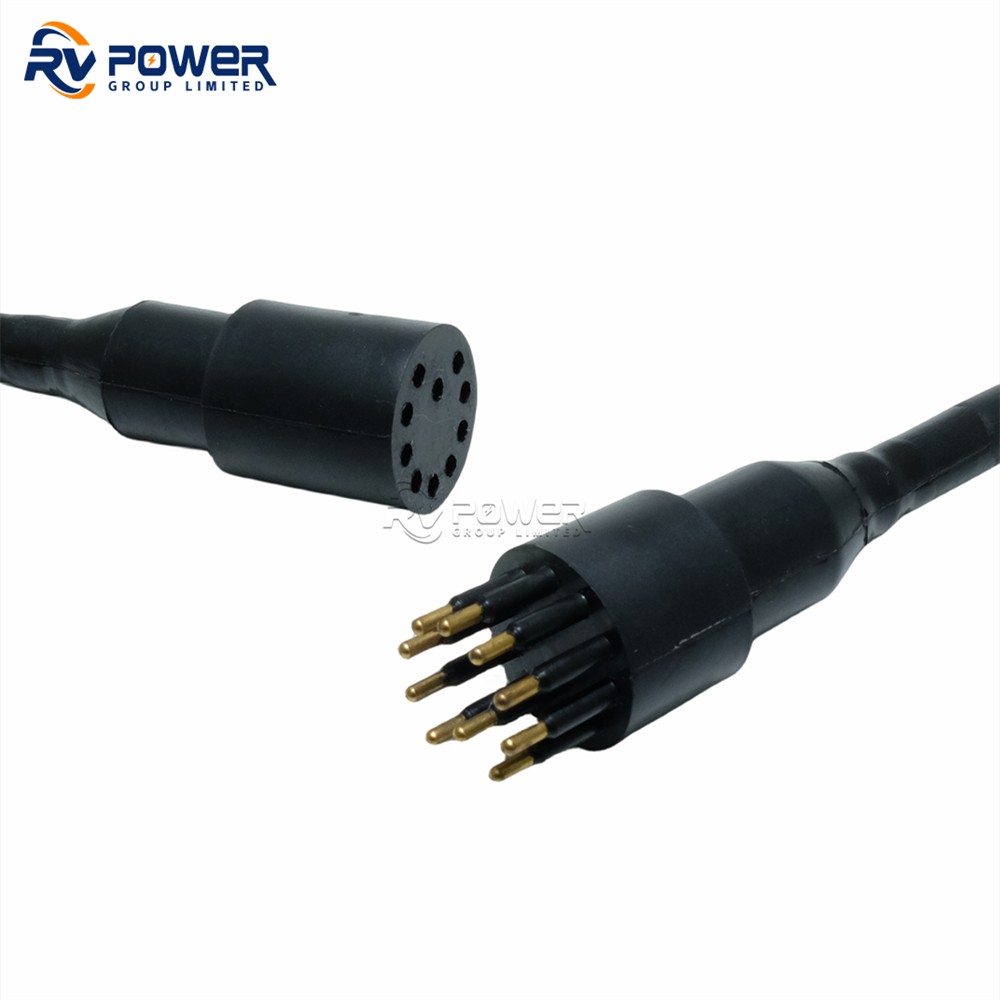

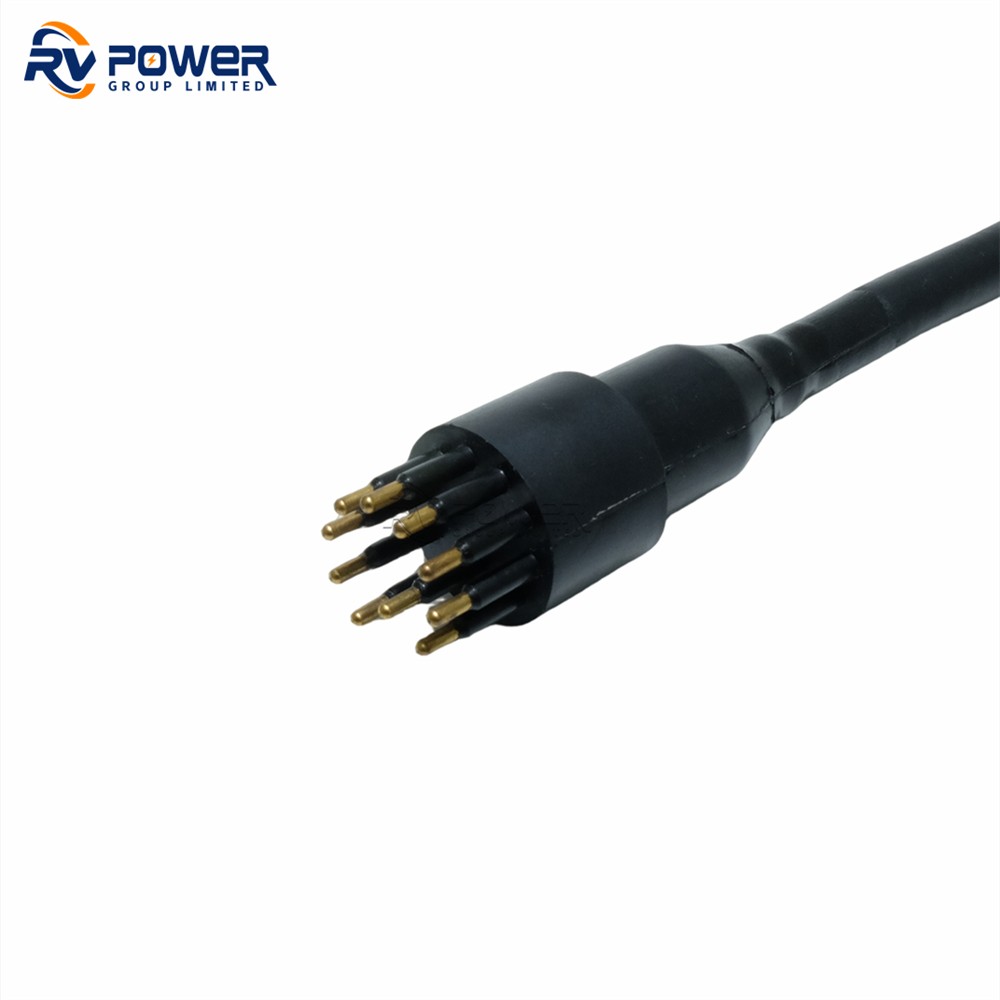

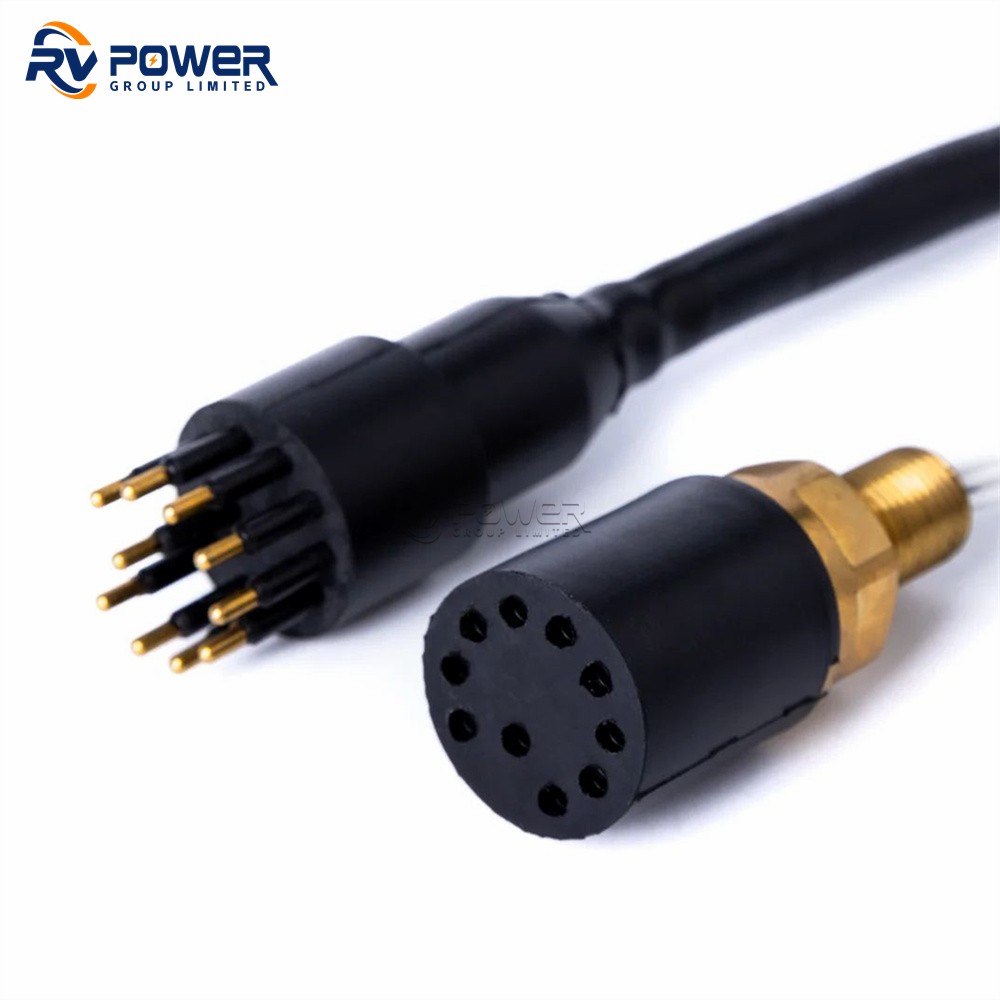

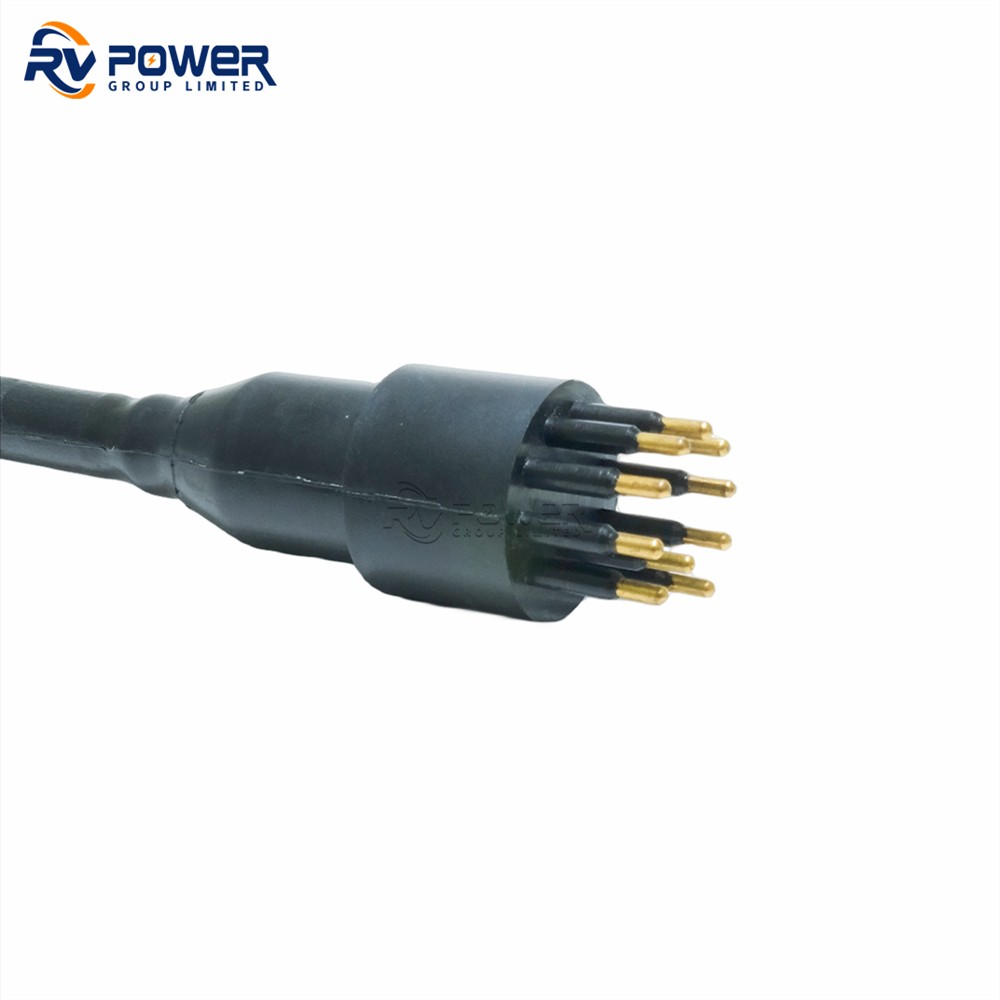

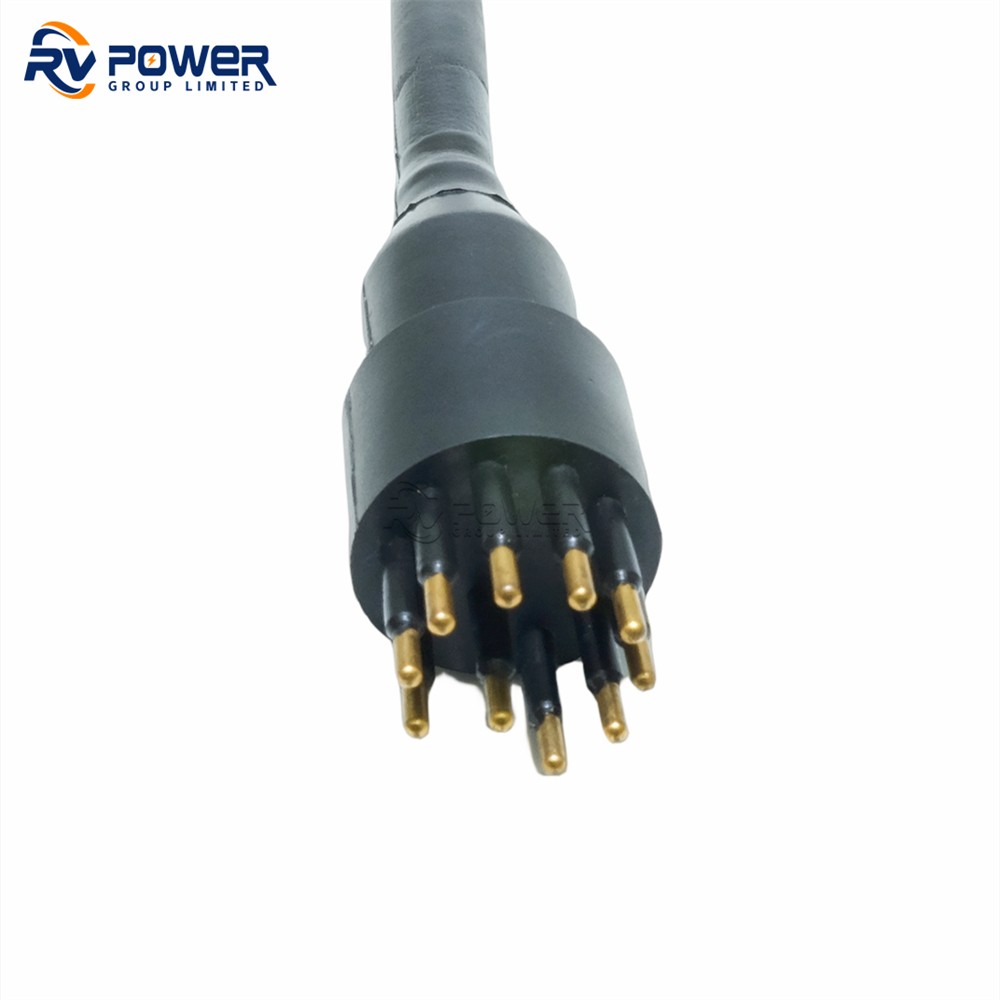

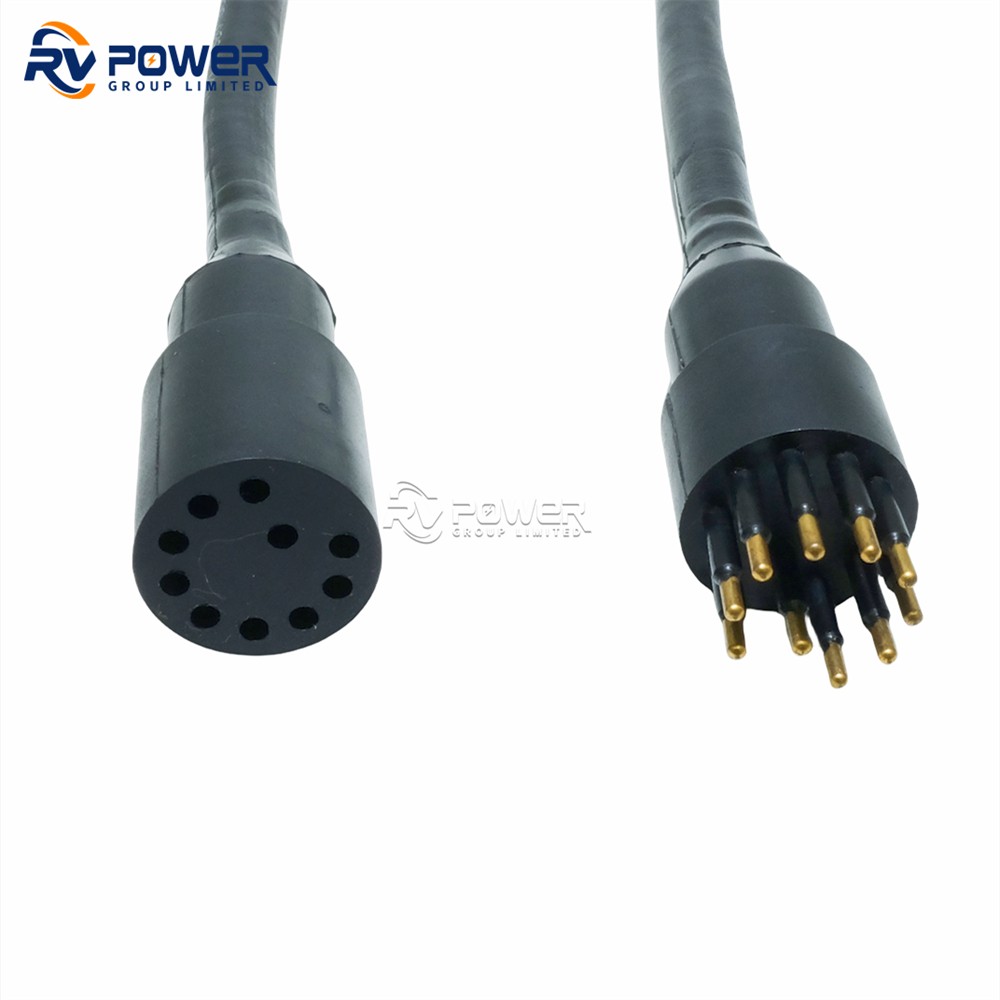

The MCIL10M is a 10-contact Micro Circular Male In-Line subsea connector engineered as a cable-mount in-line connector — terminates a free cable and mates mid-run without a panel or chassis mount. Rated to 300 V / 5 A with a qualified hydrostatic pressure of 1,400 Bar (20,300 psi) when mated, it delivers reliable power and signal performance in compact underwater systems. Gold-plated contacts and chloroprene rubber construction provide 500+ wet mating cycles with insulation resistance above 200 MΩ throughout the service life.

10 Contacts | 300 V DC/AC | 5 A/contact | 1,400 Bar Mated | 500+ Wet Matings | SubConn® Compatible

Key Design Features

• Micro Circular Male In-Line — cable-to-cable mid-run connection, compact Micro Circular form factor
• 10-contact configuration — 300 V / 5 A per contact, max 30 A per connector
• 1,400 Bar mated pressure — qualified to 1,400 Bar / 20,300 psi hydrostatic (14,000 m (exceeds any ocean depth))
• 800 Bar open-face pressure — unmated connector face withstands 800 Bar / 11,600 psi without flooding
• 500+ wet mating cycles — qualified for repeated in-situ mate/demate in full-salinity seawater
• Gold-plated contacts — Male contacts in gold-plated beryllium copper; contact resistance < 10 mΩ, corrosion-immune in ocean salinity
• Chloroprene rubber body — resists seawater, hydraulic oil, and biofouling; −40 °C to +60 °C
• Multi-material body options — brass, 316L stainless steel, titanium, anodised aluminium, or PEEK
• SubConn® Micro Circular intermatable — identical mating geometry to MacArtney SubConn® standard; 15–20% cost saving

Electrical & Mechanical Specifications

Typical Applications

• ROV / AUV systems — cable-to-cable mid-run connection connections in payload bays, tether terminations, and thruster power harnesses
• Subsea instrument networks — power and data connections for oceanographic CTD, ADCP, sonar, and fluorometer sensors
• Underwater cameras and lighting — compact 10-circuit connections for HD/4K video systems and LED lamp arrays
• Cabled observatories — inter-instrument connections in long-term seabed arrays where compact form factor is critical
• Subsea mooring systems — cable-to-instrument connections in profiling floats and mooring frames
• Oceanographic gliders — inter-module connections where minimum connector mass and OD are essential
• Naval and defence systems — sonar array harnesses and underwater vehicle payload interfaces
• Offshore energy systems — subsea monitoring and control system connections in marine renewable energy installations
• Diving systems — diver communication and life support cable connections rated for operational diving depths

Why Choose the MCIL10M

1. 1,400 Bar Qualified — Exceeds Any Commercial Deployment Depth

Qualified to 1,400 Bar (20,300 psi) when mated — equivalent to approximately 14,000 metres depth, far exceeding the deepest point in the ocean. At typical ROV operating depths of 300–6,000 m, this rating provides a pressure safety factor of 2.3× to 46×, ensuring seals never approach their failure envelope during rapid descent pressure transients and thermal cycling.

2. 500+ Wet Mating Cycles — Built for Field Operations

Qualified for more than 500 wet mate/demate cycles in seawater — sufficient for the full operational service life of most ROV tooling skids, instrument programmes, and observatory maintenance schedules. Gold-plated contacts maintain resistance below 10 mΩ across all 500+ cycles, unlike tin or nickel contacts that degrade after 20–50 seawater cycles due to chloride-induced oxidation.

3. SubConn® Intermatable — 15–20% Cost Saving, Zero Redesign

All mating dimensions, keyway geometry, and contact pin spacing of the MCIL10M conform to the MacArtney SubConn® Micro Circular standard. Existing SubConn® harnesses and mating halves connect directly — no cable modification, re-termination, or redesign required. This typically delivers a 15–20% procurement cost reduction vs. OEM SubConn® pricing while maintaining full dimensional and electrical interchangeability.

4. Multi-Material Body — Mission-Optimised Configuration

Bulkhead body options — brass, 316L stainless steel, titanium, anodised aluminium, and PEEK — allow system designers to match connector material to hull or chassis material, preventing galvanic corrosion. Titanium for CFRP AUV hulls; PEEK for electrical isolation in carbon-fibre housings; 316L stainless for long-term seabed arrays exceeding 12 months.

5. Compact Micro Circular Form Factor

The Micro Circular series delivers 10-contact electrical performance in the smallest possible subsea connector envelope. The compact body diameter and short mating engagement length make the MCIL10M the preferred choice for space-constrained instrument housings, miniaturised AUV pressure vessels, and compact ROV tooling where larger connectors would add unacceptable mass and volume.

SubConn® Compatibility & Drop-In Replacement Guide

The MCIL10M is engineered as a fully intermatable replacement for the MacArtney SubConn® MCIL10M-SS connector. All mating dimensions, keyway orientation, locking sleeve geometry, and contact pin pitch are identical to the SubConn® Micro Circular standard — direct field substitution without cable modification or system redesign.

Cost advantage: RV POWER GROUP Micro Circular connectors represent a 15–20% cost reduction vs. OEM SubConn® pricing with identical dimensional and electrical interchangeability.

How to Select the Right MCIL10M Configuration

Complete 10-Contact Micro Circular Connector Family

Frequently Asked Questions — MCIL10M Subsea Connector

Q: What is the maximum depth rating for the MCIL10M?
A: The MCIL10M is qualified to 1,400 Bar (20,300 psi) when mated — approximately 14,000 m (exceeds any ocean depth). The open-face (unmated) pressure rating is 800 Bar / 11,600 psi. A PEEK body variant provides a certified depth rating of 300 Bar / 4,350 psi (~3,000 m).

Q: Is the MCIL10M compatible with MacArtney SubConn® Micro Circular connectors?
A: Yes — 100% intermatable. All mating dimensions, keyway orientation, locking sleeve geometry, and contact pin pitch are identical to the MacArtney SubConn® Micro Circular standard. Existing SubConn® harnesses mate directly without cable modification, delivering 15–20% cost saving vs. OEM pricing.

Q: How many times can the MCIL10M be mated and demated underwater?
A: Qualified for more than 500 wet mating cycles in seawater — sufficient for the full operational service life of most ROV tooling, instrument service programmes, and cabled observatory maintenance.

Q: What cable diameter is compatible with the MCIL10M?
A: Standard variants accommodate cables from 2.5 mm to 6.0 mm outer diameter. For larger cables up to 11 mm OD, contact RV POWER GROUP for custom cable entry moulding options.

Q: What body materials are available for the MCIL10M?
A: The connector body is chloroprene rubber (standard). Bulkhead body options include brass, 316L stainless steel, titanium, anodised aluminium, and PEEK. Titanium is recommended for long-term deployments or CFRP hull interfaces. PEEK provides electrical isolation and chemical resistance.

Q: What is the difference between MCIL10M and its Bulkhead counterpart MCBH10M?
A: The MCIL10M is a In-Line connector — used for cable-to-cable mid-run connection. The MCBH10M is a Bulkhead connector — it mounts through an instrument housing panel or chassis wall, creating a watertight feedthrough point. Most subsea systems use both types together.

Q: What is the operating temperature range for the MCIL10M?
A: In water: −4 °C to +60 °C. In air (deck handling): −40 °C to +60 °C. Storage: −40 °C to +60 °C. Chloroprene rubber maintains sealing integrity and flexibility across this full range.

Q: What is the contact resistance specification for the MCIL10M?
A: Contact resistance is less than 10 mΩ per contact (< 0.01 Ω). Gold-plated contacts maintain this spec across 500+ wet mating cycles — unlike tin or nickel contacts that exhibit resistance drift after 20–50 seawater cycles.

Q: Does the MCIL10M require lubrication before mating?
A: Light application of dielectric grease to the O-ring and contact face is recommended before every mating cycle, particularly for in-air (deck-side) mating. After recovery, flush with fresh water and re-apply grease before storage to prevent O-ring compression set.

Installation, Mating & Maintenance Guidelines

Pre-Mating Inspection

• Inspect both connector faces before every mating cycle — remove debris, biofouling, and salt crystal deposits from contact faces and locking surfaces
• Check the chloroprene body and O-ring for cuts, compression set, or delamination — replace immediately if damage is found
• Verify all 10 contacts are fully seated and free of corrosion, bent pins, or foreign material
• Apply a thin film of dielectric grease to the O-ring sealing surface before in-air mating operations

Mating Procedure

• Align the keying feature precisely before applying axial load — misalignment is the primary cause of contact damage in compact circular connectors
• Apply steady axial pressure until the locking sleeve fully engages with a positive click — never force a partially engaged connector
• For underwater mating: approach slowly to allow pressure equalisation across the contact face before final engagement
• Do not apply rotational torque during mating — the push-lock mechanism is damaged by rotation

Post-Recovery Maintenance

• Flush connector faces with fresh water immediately after recovery — chloride deposits accelerate oxidation if allowed to dry on gold contacts
• Apply dielectric grease to contact faces and O-ring surfaces before extended storage in the unmated condition
• Inspect contacts and body integrity after every 50 mate/demate cycles or 12 months of service
• Replace O-rings after 200 wet mating cycles or if visible deformation, cracking, or compression set is observed
