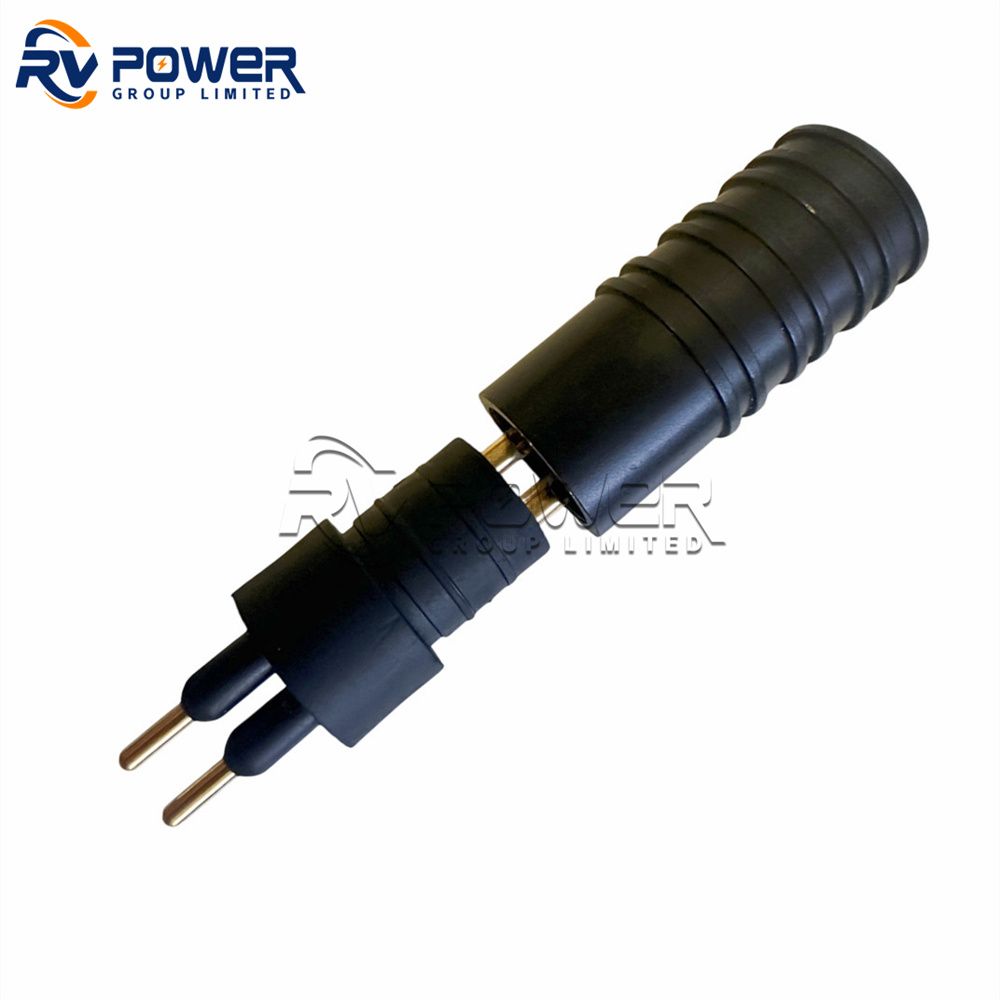

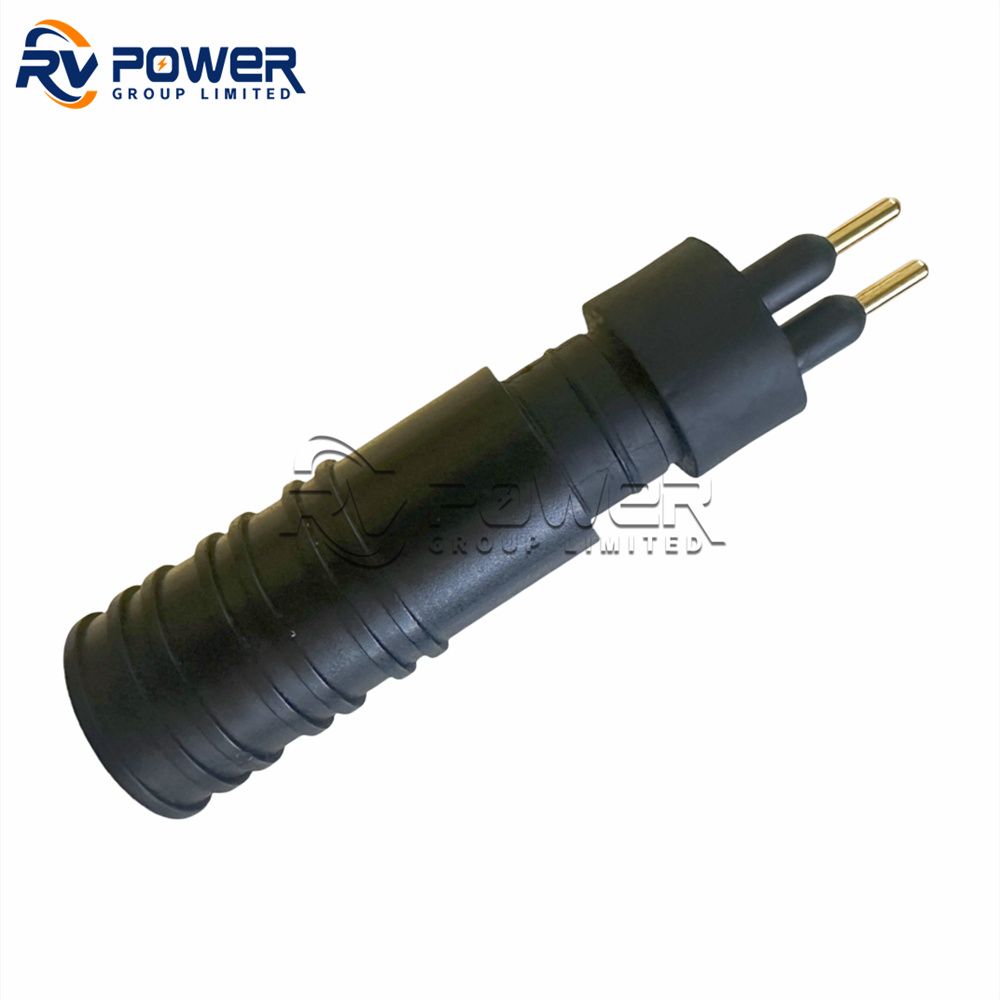

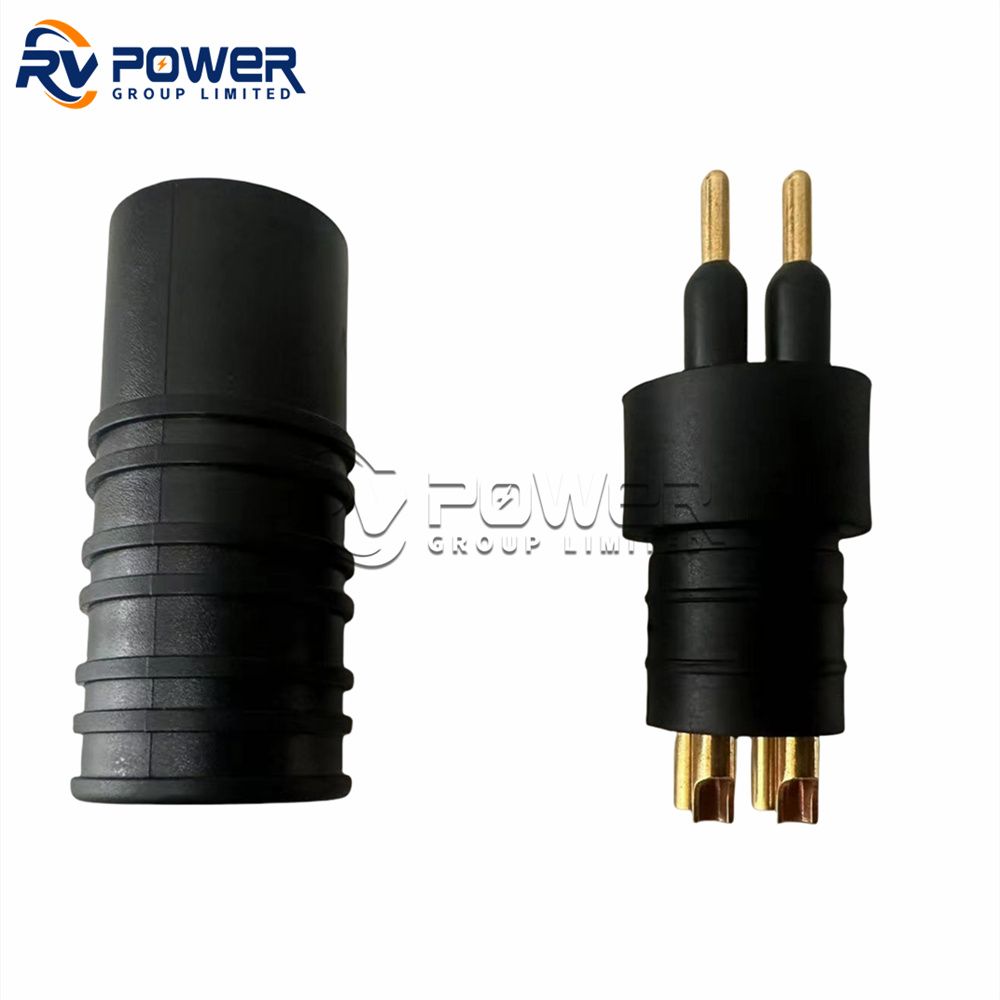

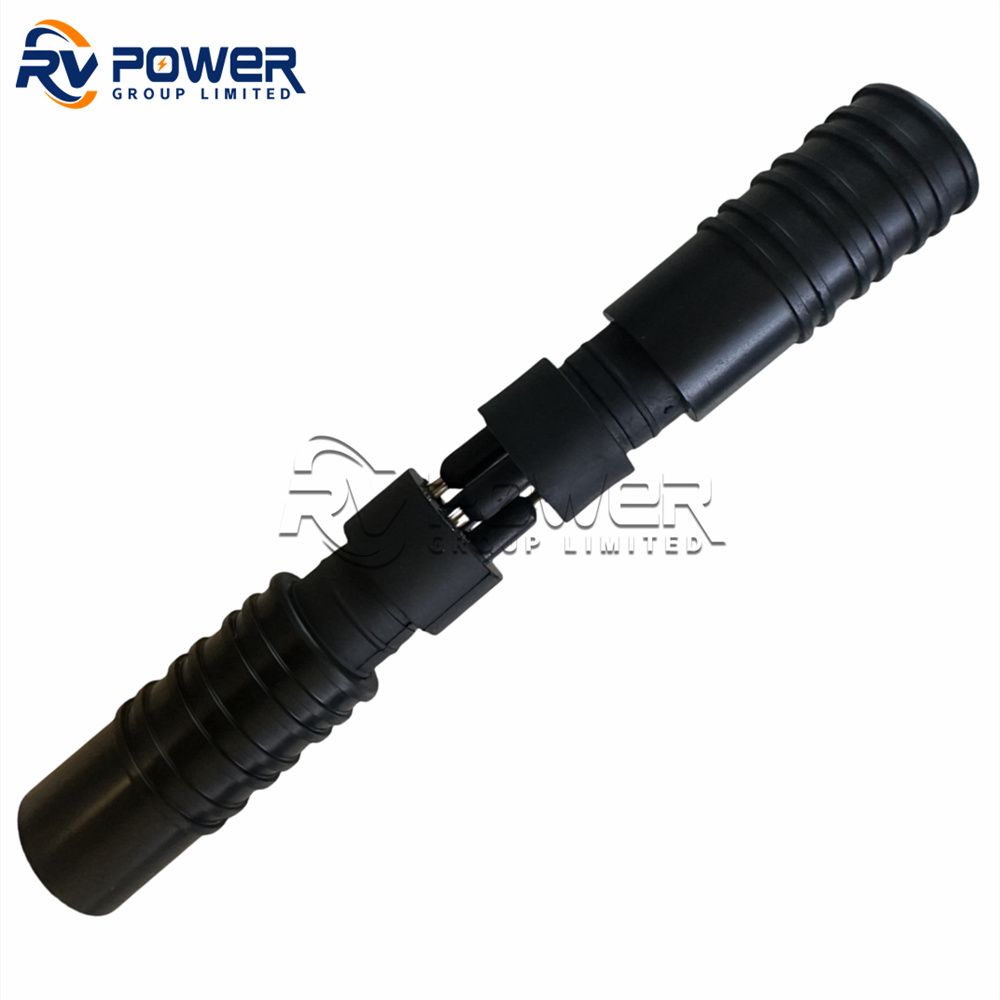

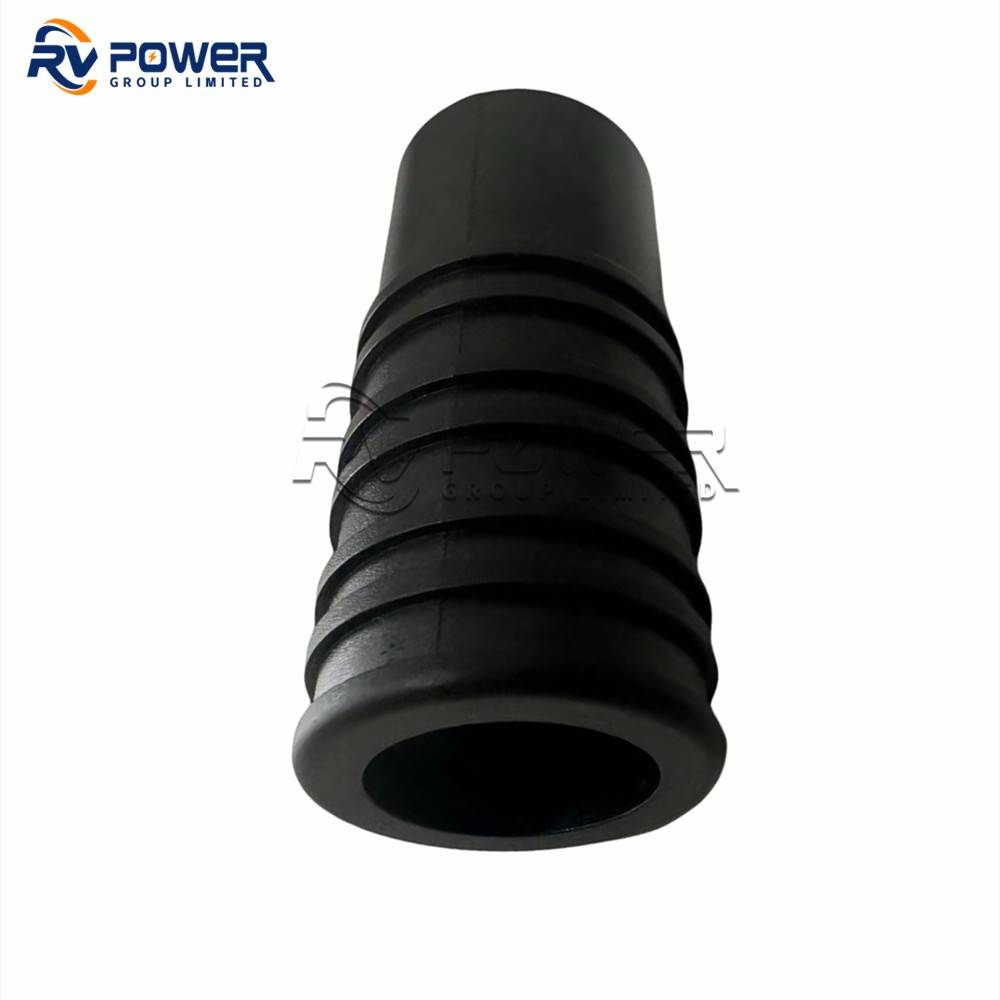

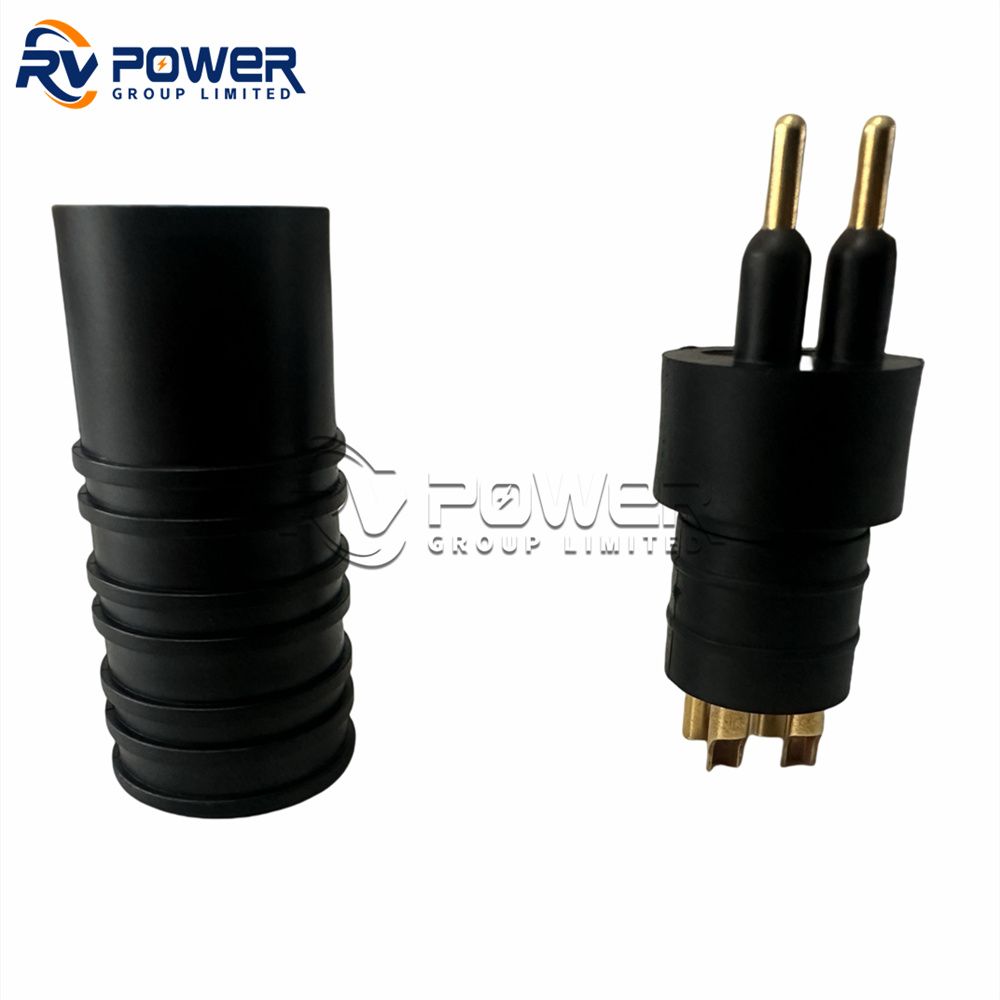

The HI-USE-SLEEVE is the potting sleeve and cable seal assembly for use with the HI-USE-2M2F commercial diver helmet connector. Provides cable entry seal, silicone potting cavity, and mechanical strain relief to protect the connector cable termination from water ingress and tensile loads during diver umbilical and hat cable service.

Key Design Features

Cable Entry Seal: O-ring seal between cable outer jacket and sleeve body.
Potting Cavity: Internal cavity for silicone potting of conductor terminations.
Mechanical Strain Relief: Transfers tensile load from cable jacket to connector body.
Rubber Body: Flexible, buoyant, compatible with HI-USE-2M2F rubber body.
300 m (30 Bar) Rated: Full depth rating matched to HI-USE-2M2F connector.
Mandatory Accessory: Always used with HI-USE-2M2F in full helmet connector assembly.
IMCA D 035 Compliant

Typical Applications

Cable seal and strain relief for HI-USE-2M2F diver helmet connector
Kirby Morgan, DESCO, Divator hat cable assembly completion
Commercial diving umbilical hat cable termination potting

Frequently Asked Questions

Q: Is the HI-USE-SLEEVE sold with the HI-USE-2M2F?

A: Sold separately. Both are required for a complete diver helmet connector assembly.

Q: What potting compound is used?

A: Silicone RTV - contact [email protected] for specific compound recommendation.

Q: Depth rating?

A: 300 m (30 Bar) - matches HI-USE-2M2F connector rating.

Q: Can I get a factory-potted assembly?

A: Yes - factory-potted hat cable assemblies available. Contact [email protected].

Q: IMCA compliant?

A: Yes - IMCA D 035.

Q: Cable diameter range?

A: Contact [email protected] with your cable OD for fitment confirmation.

Q: Service interval?

A: Inspect cable seal O-ring annually. Replace if cut or distorted.

Diving Connector-RMG/RMK

Hi-Use connector, 2 male pins & 2 female sockets potting sleeve
