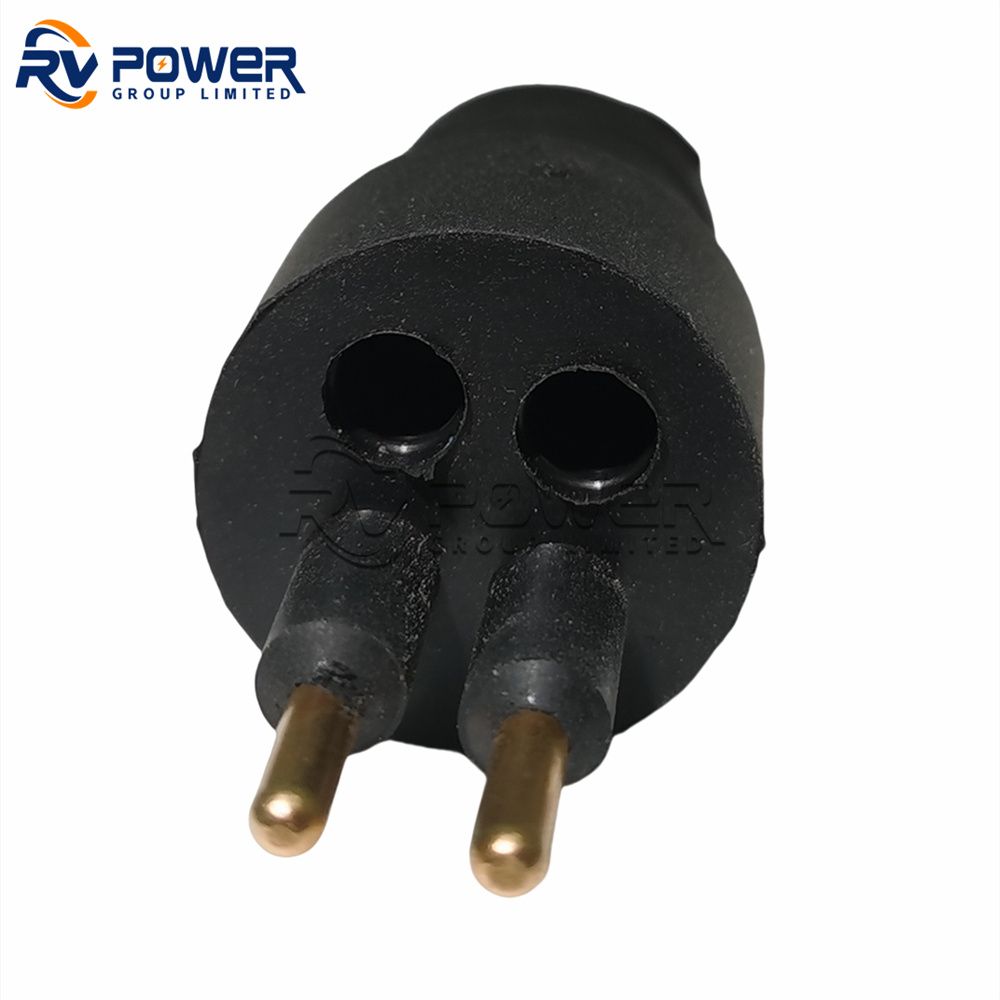

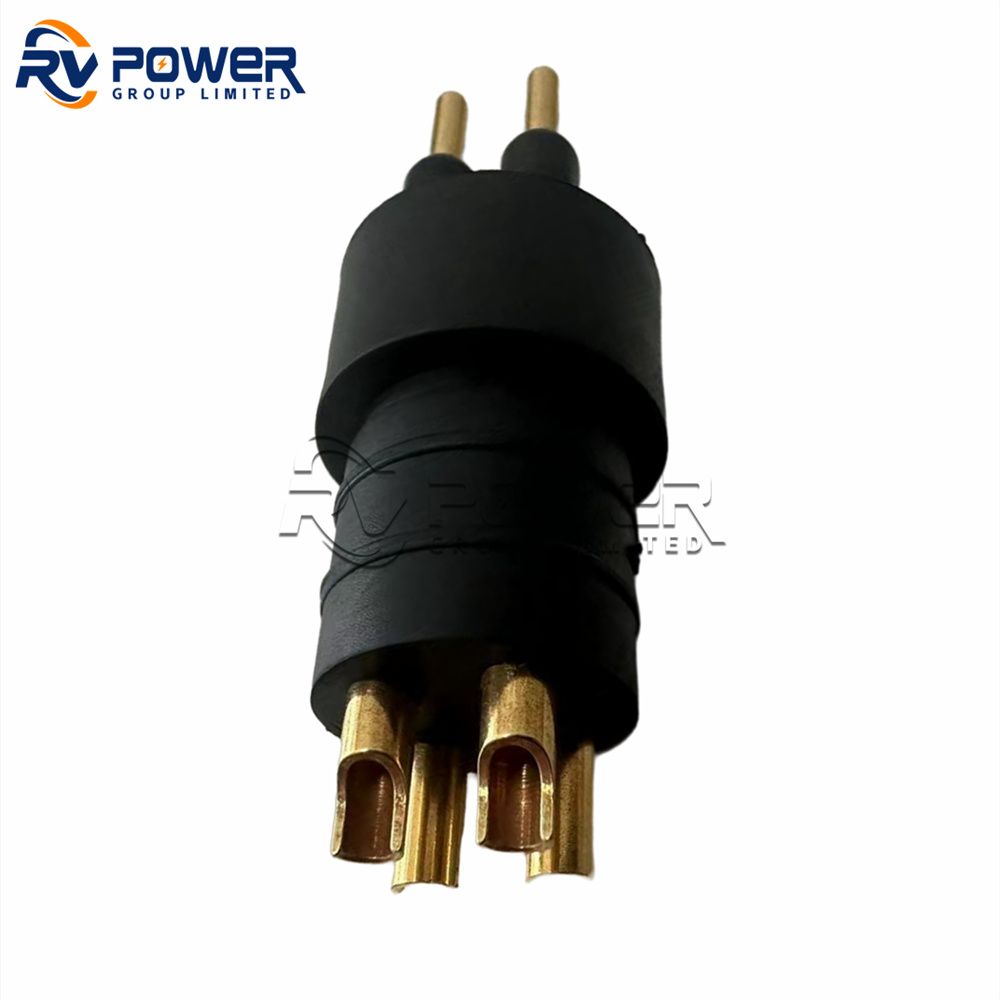

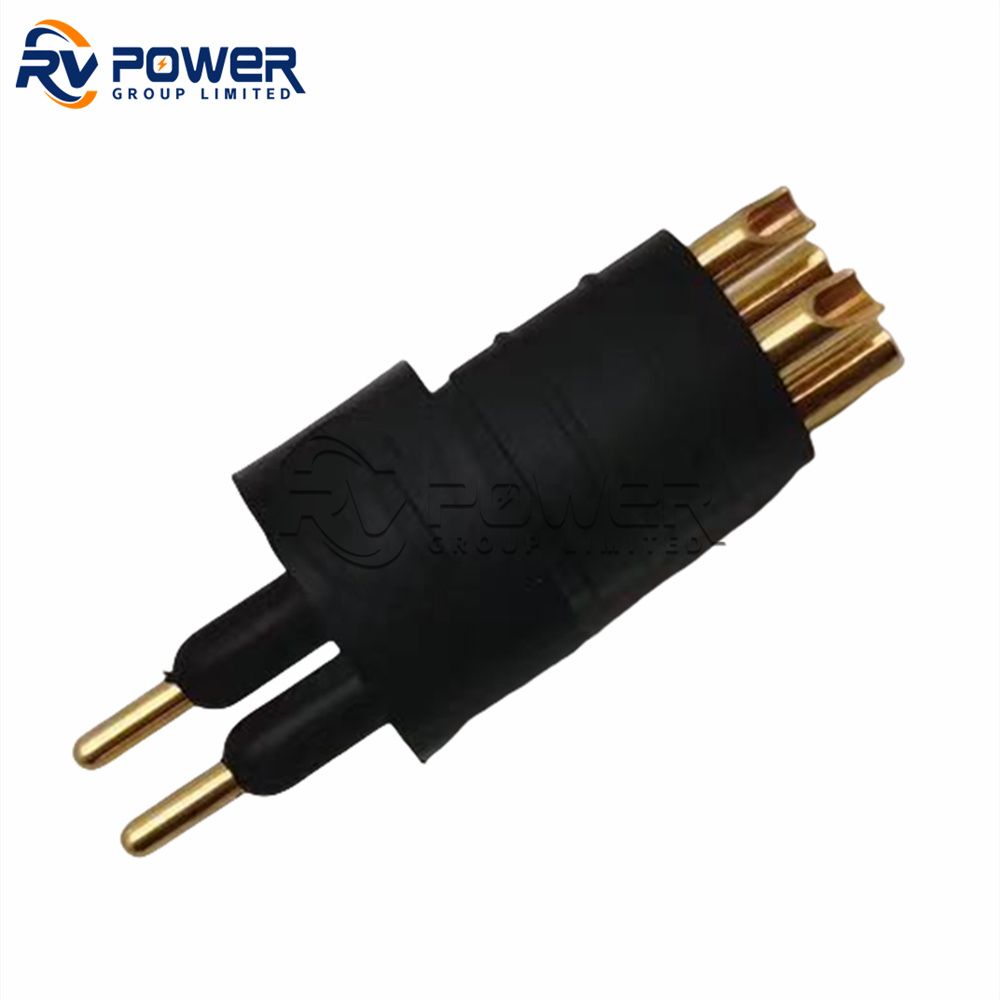

The HI-USE-2M2F is a combination diver helmet connector with 2 male pins and 2 female sockets in one rubber-molded body. Designed for Kirby Morgan, DESCO, Divator, and similar commercial diving helmets/hats requiring split-key comms and video circuits in a single compact mating interface. Rated to 300 m (30 Bar), 250 V / 10 A per contact, IMCA D 035.
Key Design Features
- Combination 2M+2F in One Body: Both circuit directions in one connector - eliminates mix-up of diver hat cable connections.
- Helmet-Optimised Geometry: Fits Kirby Morgan KM-77/97/37, DESCO, and Divator helmet cable exit points.
- 300 m (30 Bar) Depth Rating
- 250 V DC/AC / 10 A Per Contact
- IMCA D 035 Compliant
- Rubber Over-Mould Body: Flexible, resistant to deck drops and chemical contamination.
- Push-to-Mate: Tool-free mating with gloves on.

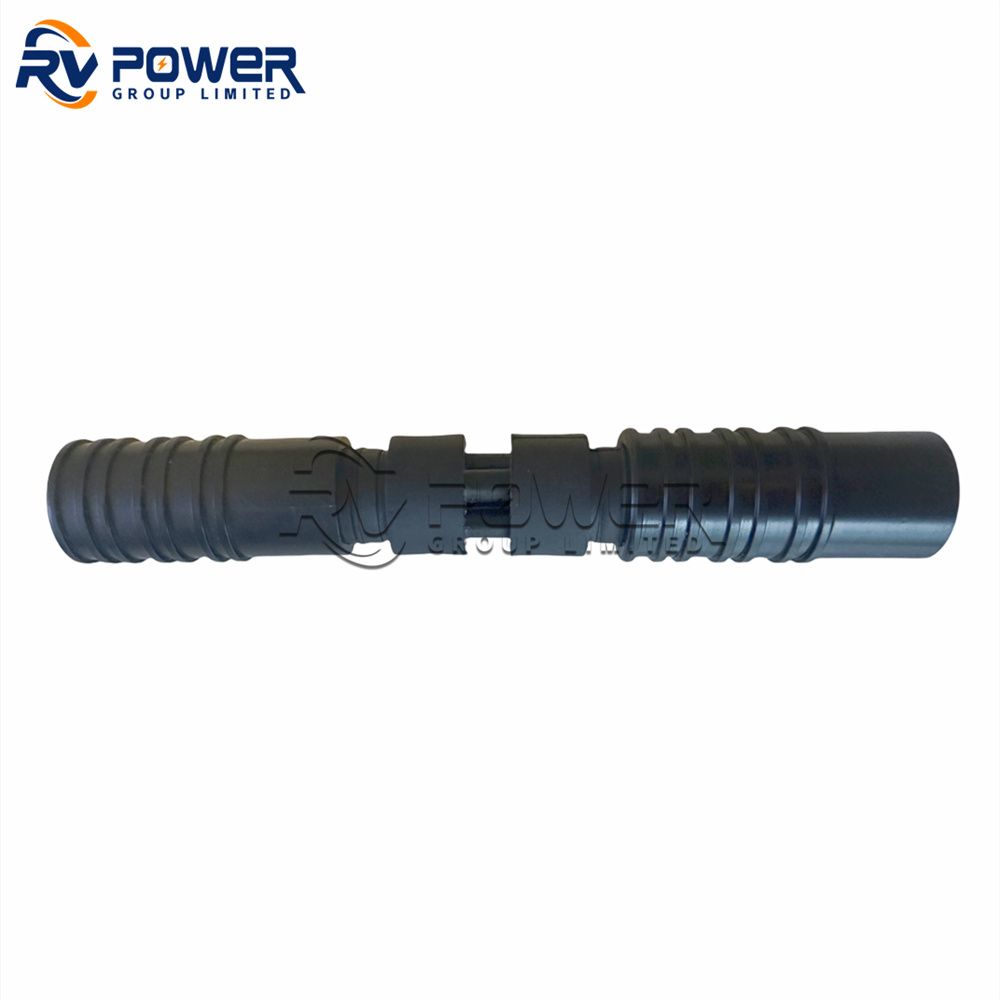

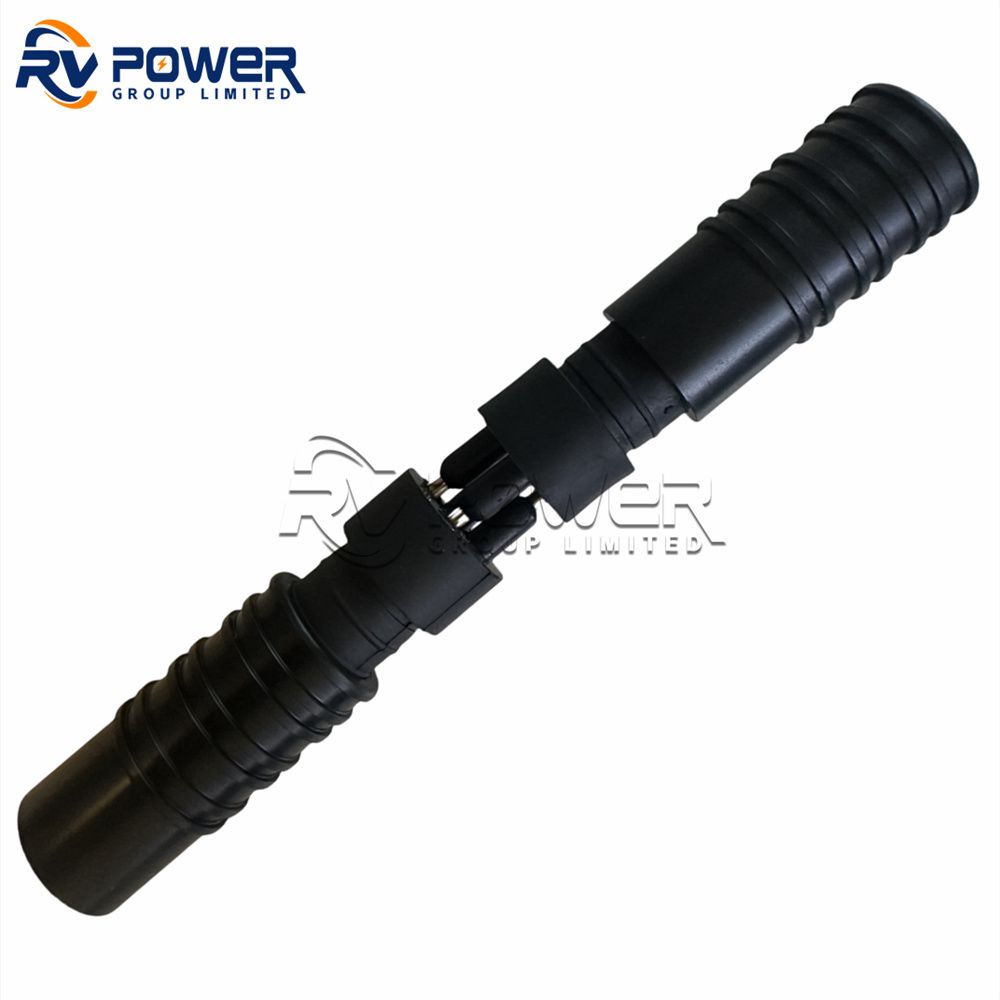

- Used with HI-USE-SLEEVE Potting Sleeve: Cable seal and strain relief.
Electrical Specifications
| Parameter | Value |
|---|---|
| Model | HI-USE-2M2F |
| Configuration | 2 Male Pins + 2 Female Sockets |
| Rated voltage | 250 V DC/AC rms |
| Rated current | 10 A per contact |
| Depth rating | 300 m (30 Bar) |
| Standard | IMCA D 035 |
| Body material | Rubber over-mould |
| Contact material | Gold-plated beryllium copper |
Typical Applications
- Commercial diver helmet/hat (Kirby Morgan, DESCO, Divator) comms and video connections
- Surface-supplied diving umbilical hat cable breakout connectors
- Bell diving hat interface connections
- Saturation diving hat cable connectors
- IMCA-compliant diver hat cable management
Frequently Asked Questions
Q: Which helmet types does the HI-USE-2M2F fit?
A: Designed for Kirby Morgan (KM-77, KM-97, KM-37), DESCO, and Divator helmets. Contact [email protected] to confirm your hat model.
Q: What potting sleeve is used with the HI-USE-2M2F?
A: HI-USE-SLEEVE (ID 809) provides cable seal, potting, and strain relief.
Q: Is this connector rated for saturation diving?
A: Yes - rated to 300 m and IMCA D 035 compliant for saturation hat cable use.
Q: Can I get a factory-assembled hat cable?
A: Yes - contact [email protected] with helmet model, cable spec, and length.
Q: Voltage and current rating?
A: 250 V DC/AC rms, 10 A per contact (40 A total across all 4 contacts).
Q: Is a locking sleeve used with the HI-USE-2M2F?
A: Standard RMG locking sleeves fit. Contact [email protected] for specific recommendation.
Q: Depth rating?
A: 300 m (30 Bar).
Q: IMCA compliant?
A: Yes - IMCA D 035.
Q: Service interval?
A: Inspect after every dive; O-ring replacement every 2 years; full replacement after 500 wet-mate cycles.
