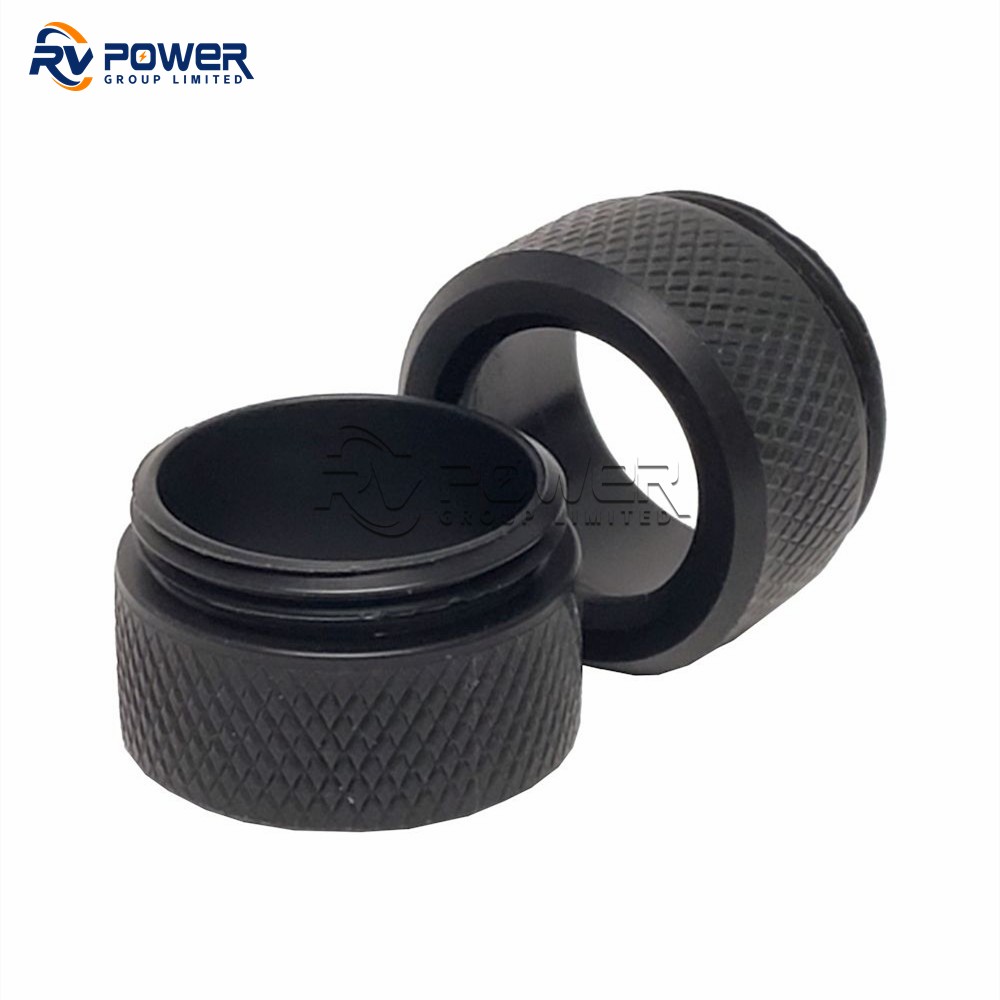

The K-MLS-D is the Male Locking Sleeve for the RMK Series 5/6-pin commercial diving connector range. Locking sleeves are mandatory safety components that prevent accidental de-mating during all diving, deck handling, and transit operations. Must be engaged after every mating on a commercial diving spread.
Key Design Features
- Mandatory Safety Retention for 5/6-pin RMK: Prevents accidental de-mating from cable tension and vibration.
- Male Configuration: Designed for the male connector half of the mated pair.
- Snap-Lock Engagement: Single-hand, glove-friendly - audible click confirms full engagement.
- POM Construction: Corrosion-proof, lightweight, maintains engagement at rated depth.
- Series-Specific Fit: Precision-manufactured for RMK connector body.
- Rated to 300 m (30 Bar)
- Colour Options: Black standard; red/yellow/blue/green available.
- Replacement Interval: Every 50 mating cycles or annually.
- Sold Individually - Always Carry Spares
Specifications
| Parameter | Value |
|---|---|
| Model number | K-MLS-D |
| Compatible series | RMK 5/6-pin |
| Compatible gender | Male (MLS) |
| Material | POM (polyoxymethylene) standard; 316 SS on request |
| Engagement type | Snap-lock |
| Rated depth | 300 m (30 Bar) |
| Temperature range | -40 C to +60 C |
| Colour options | Black (standard); Red/Yellow/Blue/Green on request |
Typical Applications
- Locking all RMK 5/6-pin in-line mated pairs on diving umbilicals
- Securing connectors on bell umbilicals subject to water drag
- Panel-to-cable connector retention on dive basket electrical panels
- Saturation system umbilical connector retention at all connection points
- Colour-coded circuit identification on multi-connector panels
- All IMCA-compliant commercial diving spread connector installations
- Replacing worn or lost sleeves during vessel-based maintenance
- Offshore DSV onboard spare parts stock
- Commercial diving contractor equipment inventory
Frequently Asked Questions
Q: Is a locking sleeve really necessary?
A: Yes - mandatory before every deployment. Cable tension and vibration can cause de-mating without it.
Q: Which connectors does K-MLS-D fit?
A: Fits all male (MLS) RMK 5/6-pin connectors.
Q: How to confirm engagement?
A: Audible click plus sleeve cannot be pulled rearward by hand.
Q: Replacement interval?
A: Every 50 mating cycles or annually - whichever first.
Q: Colour-coded options?
A: Yes - contact [email protected] with quantity and colour requirements.
Q: SS locking sleeves available?
A: Yes - 316 SS on request for high-abrasion environments.
Q: Need FLS and MLS on both connector halves?
A: Minimum one per mated pair; best practice is one on each connector half.
Q: Shelf life of unused sleeves?
A: POM has indefinite shelf life in normal storage. Stock spares for every connector.
Q: POM sleeve on rubber connector body?
A: Yes - fully compatible, no galvanic incompatibility in seawater service.
