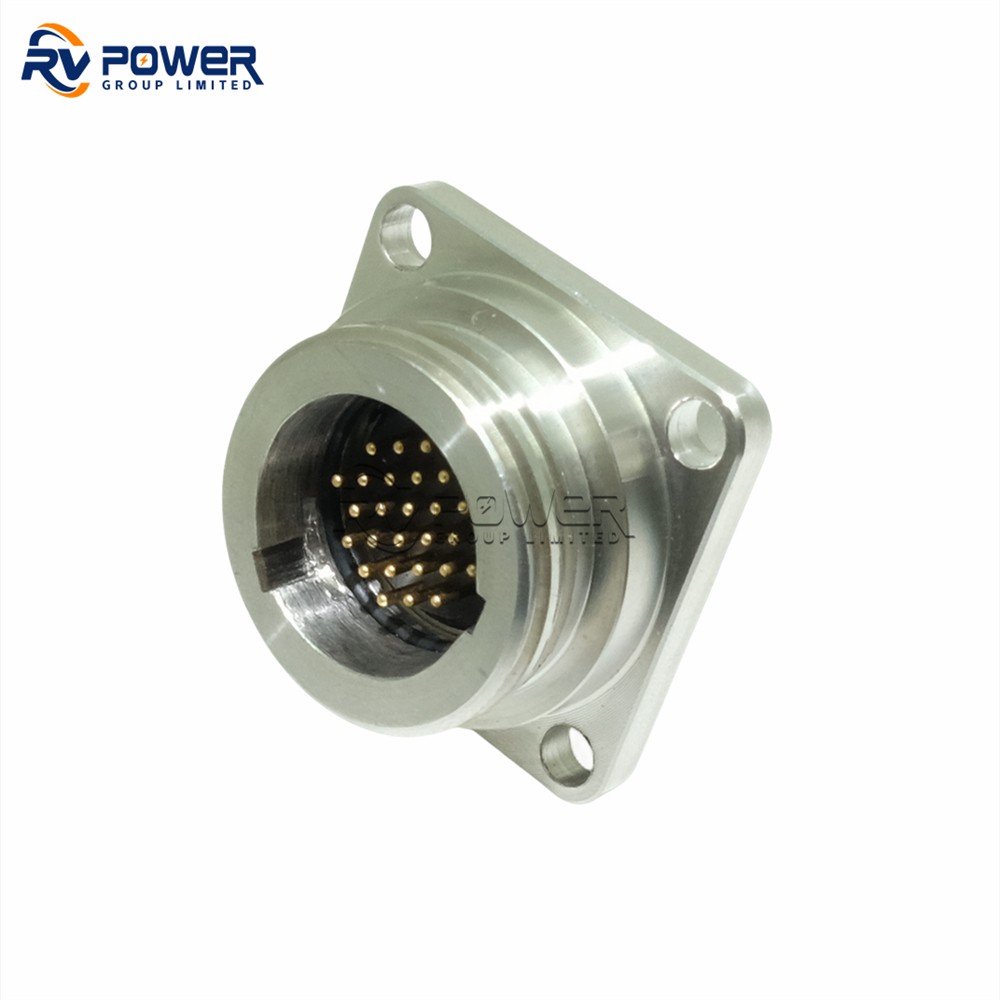

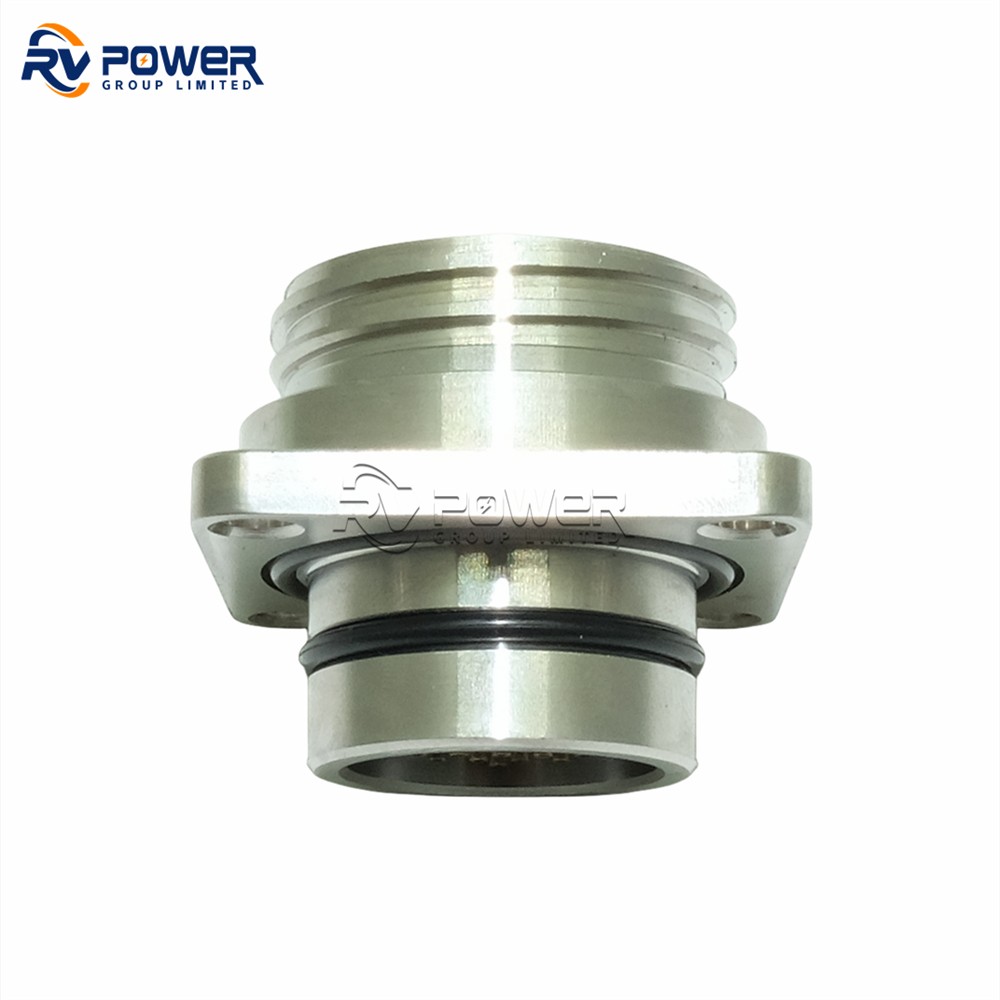

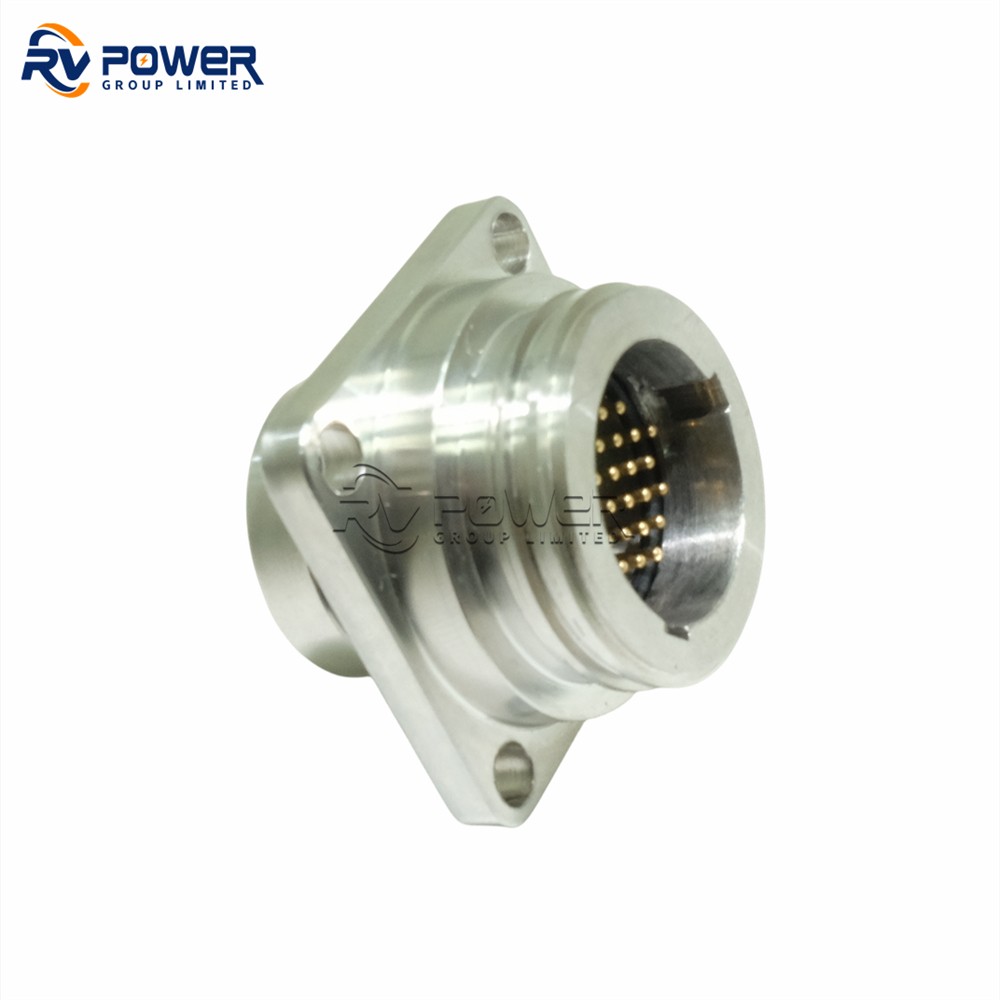

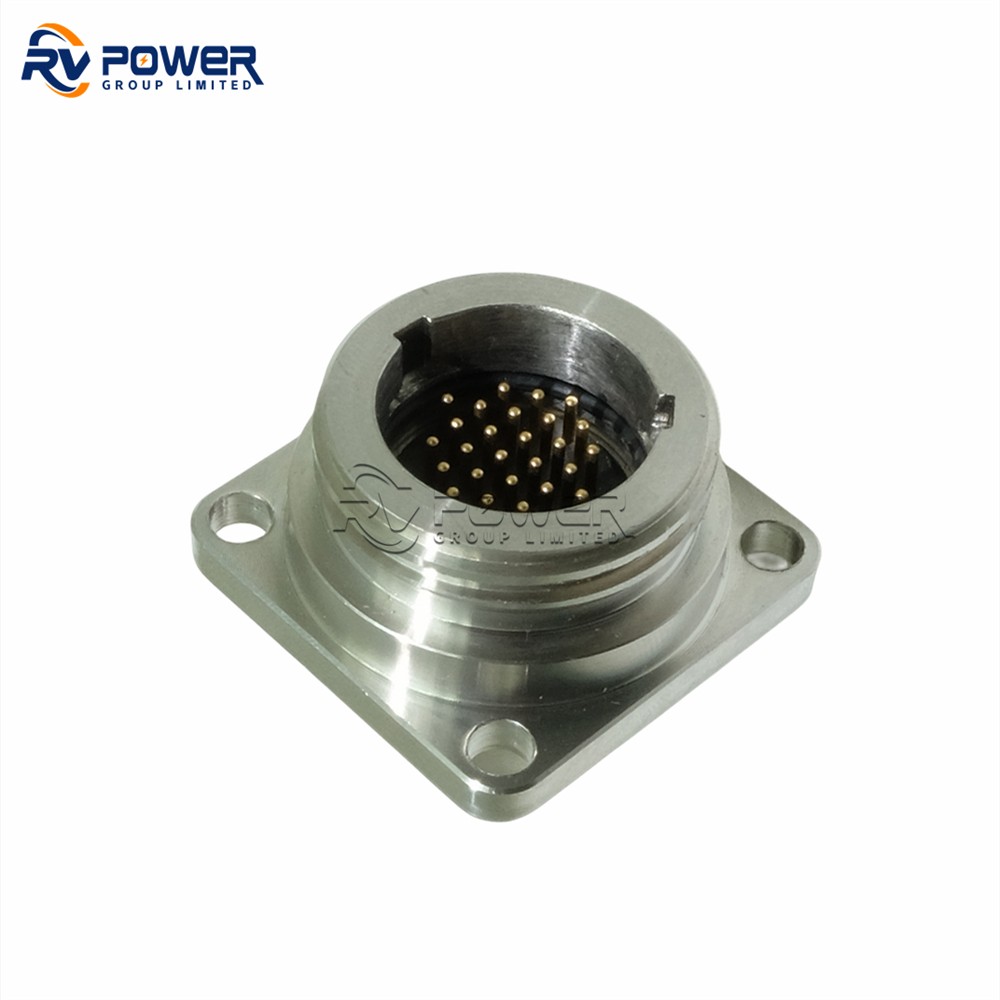

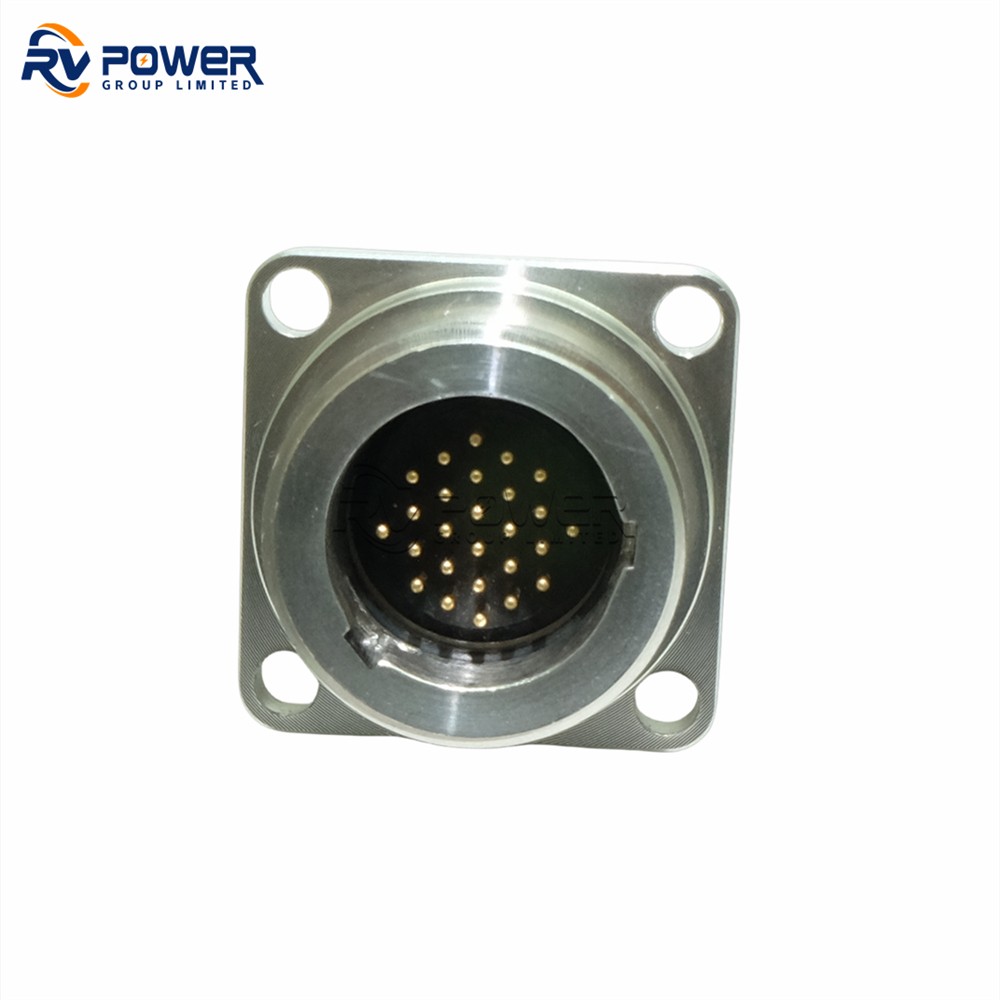

The MINM-FCR is a SEACON MIN-M Compatible FCR Connector, Size M, 26 contacts (#20 gauge), rated to 690 Bar (10,000 psi) mated. The SEACON MIN-M series is an industry-standard multi-pin connector widely used in oceanographic instruments, cable terminations, and data acquisition systems where high pin density in a compact envelope is required. This unit is dimensionally compatible with genuine SEACON MIN-M hardware for direct field replacement.
At a glance: Size M | 26 pins #20 | 600 V | 5 A/contact | Mated 690 Bar | Wet matings >500
Key Design Features
- SEACON MIN-M Dimensional Compatibility: Drop-in replacement for genuine SEACON MIN-M connectors — same thread, same face, same mating geometry.
- 26-Pin High Density, Size M: #20 gauge contacts support 5 A per contact with 26 independent circuits in a compact M-size housing — ideal for multi-sensor instrument packages.
- 690 Bar Mated Pressure: Suitable for deep-science AUV and lander deployments to full ocean-depth instrument packages.
- Wet-Mate Capable: Chloroprene rubber wiper seals enable reliable underwater mating; >500 wet-mate cycle rating.
- 600 V Rated: Supports power distribution and signal circuits simultaneously in the same multi-pin connector.
- Gold-Plated Contacts: Brass female sockets and beryllium copper male pins, gold-plated, for <0.01 Ω contact resistance and corrosion immunity.
- Stainless Steel or Titanium Shell: Available in 316 SS as standard; Ti option for weight-sensitive scientific platforms.
- POM or SS Locking Sleeve: Positive locking prevents accidental unmating under tether tension or sea-state vibration.
- Custom Cable Lengths and Assemblies: Factory-terminated to specified cable type and length; test reports available per unit.
Electrical & Mechanical Specifications
| Parameter | Value |
|---|---|
| Model number | MINM-FCR |
| Connector series | SEACON MIN-M Compatible Series |
| Configuration | FCR |
| Shell size | M |
| Number of contacts / channels | 26 |
| Voltage rating | 600 V DC/AC rms |
| Current per contact | 5 A per contact |
| Maximum total current | 130 A (26 pin total) |
| Insulation resistance | >200 MΩ |
| Contact resistance | <0.01 Ω |
| Mated pressure rating | 690 Bar (10,000 psi) |
| Open-face pressure rating | 480 Bar (7,000 psi) |
| Wet / dry matings | >500 cycles |
| Temperature rating (water) | −4°C to +60°C |
| Temperature rating (air) | −40°C to +60°C |
| Connector body material | Chloroprene rubber |
| Shell / housing material | 316 Stainless Steel (Titanium on request) |
| Contacts | Gold-plated brass (female) / Gold-plated beryllium copper (male) |
| Locking mechanism | POM or Stainless Steel locking sleeve (mandatory before deployment) |
| O-ring seals | Nitrile |
| Cable jacket | Polyurethane (PUR) or Synthetic Rubber — customer-specified OD |
Typical Applications
- Oceanographic instrument packages — CTD rosette systems and profiling floats
- Scientific AUV and glider multi-sensor payloads
- Underwater camera and video systems — signal and power in one connector
- Subsea data acquisition modules (DAMs) and acoustic telemetry systems
- Ocean bottom seismometer (OBS) deployment and recovery cables
- Cable terminations for mooring and lander systems
- Marine geophysical survey equipment — streamer and node connections
- Cabled observatory science node connectors
- Naval and defence underwater sensor arrays
Why Choose MINM-FCR?
Proven Industry Compatibility
The MINM-FCR is dimensionally compatible with the original series it references, providing direct field replacement without system redesign, re-wiring, or adapter hardware.
Factory Quality Control
Every connector is continuity-tested, insulation-tested, and visually inspected before shipment. Batch pressure test certificates are available on request for programme quality assurance.
Flexible Configuration Options
Available with customer-specified cable type, cable length, body material (SS / Ti / anodised Al), and contact plating to meet specific programme technical requirements.
Competitive Pricing with Short Lead Times
RV Power Group's manufacturing capability and strategic material inventory enable competitive pricing and short lead times versus OEM sources — particularly advantageous for spare parts, emergency replacements, and high-volume projects.
Technical Support
Our subsea connector engineers are available to advise on selection, mating compatibility, and installation — contact for application support.
Complete 55-Series & Industry-Standard Connector Range
| Product | Model | Type | Shell | Pins |
|---|---|---|---|---|
| 5506-1503 Burton Compatible 55 Series Flange Pin Insert, Shell 20, 3 Pin | 5506-1503 | FCR | 20 | 3 |
| 5507-1503 Burton Compatible 55 Series Bulkhead Pin Insert, Shell 20, 3 Pin | 5507-1503 | BCR | 20 | 3 |
| 5501-1503 Burton Compatible 55 Series Cable Plug, Shell 15, 3 Pin | 5501-1503 | CCP | 15 | 3 |
| 5501-1504 Burton Compatible 55 Series Cable Plug, Shell 15, 4 Pin | 5501-1504 | CCP | 15 | 4 |
| 5501-1506 Burton Compatible 55 Series Cable Plug, Shell 15, 6 Pin | 5501-1506 | CCP | 15 | 6 |
| 5501-1508 Burton Compatible 55 Series Cable Plug, Shell 15, 8 Pin | 5501-1508 | CCP | 15 | 8 |
| 5501-1508 Burton Compatible 55 Series Dummy Plug, Shell 15, 8 Pin | 5501-1508-DUM | Dummy | 15 | 8 |
| 5507-1508 Burton Compatible 55 Series Bulkhead Pin Insert, Shell 15, 8 Pin | 5507-1508 | BCR | 15 | 8 |
| 5506-1508 Burton Compatible 55 Series Flange Pin Insert, Shell 15, 8 Pin | 5506-1508 | FCR | 15 | 8 |
| 55P1-1508 Burton Compatible 55 Series Pressure Balanced Oil Filled (PBOF), Shell 15, 8 Pin | 55P1-1508 | PBOF | 15 | 8 |
| 55R1-1508 Burton Compatible 55 Series Right Angle Socket Insert, Shell 15, 8 Pin | 55R1-1508 | RA | 15 | 8 |
| 5501-2008 Burton Compatible 55 Series Cable Plug, Shell 20, 8 Pin | 5501-2008 | CCP | 20 | 8 |
| 5501-2412 Burton Compatible 55 Series Cable Plug, Shell 24, 12 Pin | 5501-2412 | CCP | 24 | 12 |
| 5507-2008 Burton Compatible 55 Series Bulkhead Pin Insert, Shell 20, 8 Pin | 5507-2008 | BCR | 20 | 8 |
| 5501-2013 Burton Compatible 55 Series Ethernet Cable Plug, Shell 20, 13 Pin | 5501-2013-ETH | Ethernet | 20 | 13 |
| 5501-2013 Burton Compatible 55 Series Cable Plug, Shell 20, 13 Pin | 5501-2013 | CCP | 20 | 13 |
| 5506-2013 Burton Compatible 55 Series Flange Pin Insert, Shell 20, 13 Pin | 5506-2013 | FCR | 20 | 13 |
| 5507-2021 Burton Compatible 55 Series Bulkhead Pin Insert, Shell 20, 21 Pin | 5507-2021 | BCR | 20 | 21 |
| 5501-2021 Burton Compatible 55 Series Cable Plug, Shell 20, 21 Pin | 5501-2021 | CCP | 20 | 21 |

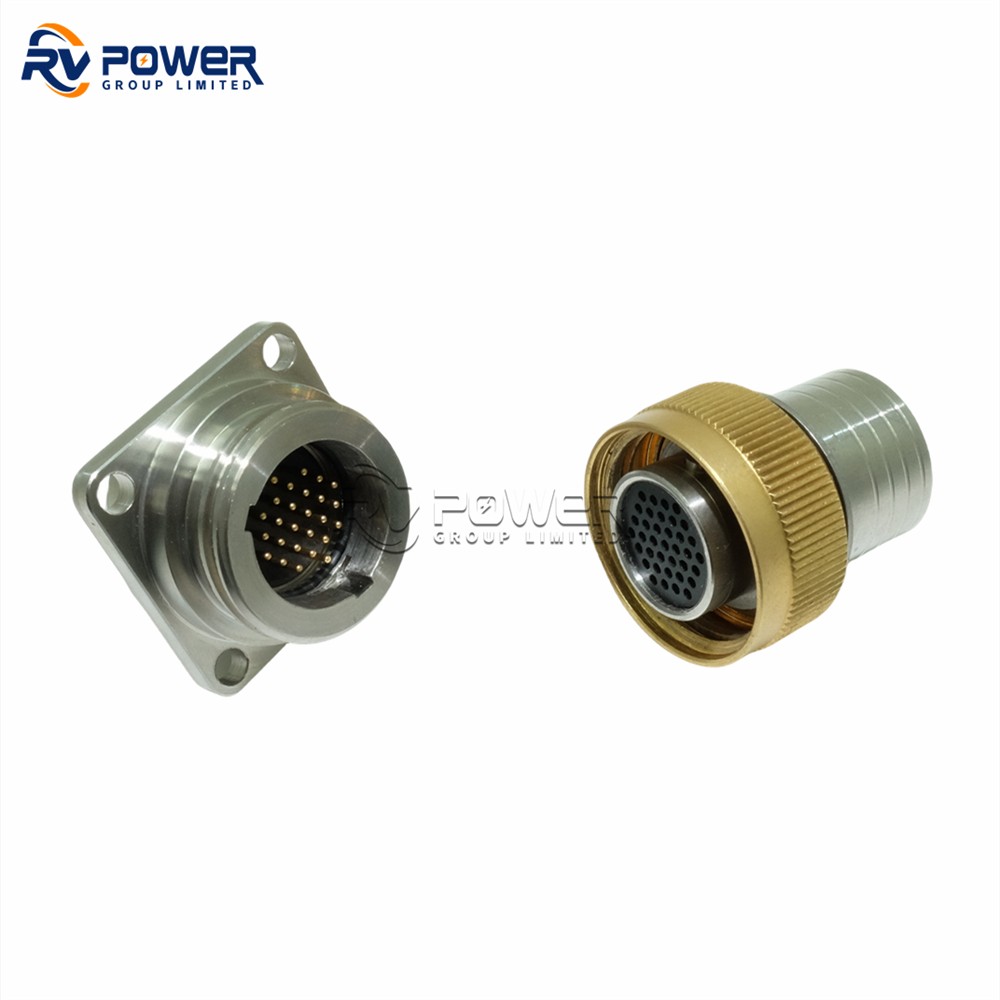

| SEACON MIN-M Compatible MINM-FCR, Size M, 26 Pin #20 | MINM-FCR | FCR | M | 26 |
| SEACON MIN-M Compatible MINM-CCP, Size M, 26 Pin #20 | MINM-CCP | CCP | M | 26 |
| SEACON Compatible CS-MS Electrical Dry-Mate Connector CS-MS-J-09-CCP | CS-MS-J-09-CCP | CCP | 09 | 9 |
| IE2M EO Underwater Pluggable Connector | IE2M | EO-plug | — | 2 |
| IE2F EO Underwater Pluggable Connector | IE2F | EO-plug | — | 2 |
| IE2M-BC EO Underwater Pluggable Connector Bulkhead | IE2M-BC | EO-bcr | — | 2 |
| IE2F-BC EO Underwater Pluggable Connector Bulkhead | IE2F-BC | EO-bcr | — | 2 |
| IEB4M EO Underwater Pluggable Connector | IEB4M | EO-plug | — | 4 |
| IEB4F EO Underwater Pluggable Connector | IEB4F | EO-plug | — | 4 |
| MCIL8F + MCDLSF — 55R1-1508 EO Cable Assembly, 8 Way Male/Female | MCIL8F+MCDLSF | Cable | — | 8 |
| 865MC Pigtail EO Cable 8-Way Male/Female (86-5 Series) | 865MC | Pigtail | — | 8 |
| LPMBH-7-MP Low-Profile Micro In-Line 7-Pin Male/Female EO Cable Bulkhead | LPMBH-7-MP | BH | — | 7 |
| MINI-Con MINK-CCP 19 Pin #22 Female | MINK-CCP | CCP | — | 19 |
How to Select Your 55-Series or Compatible Connector
| Selection Criterion | Guidance |
|---|---|
| Shell size | Shell 15 (small, up to 8 pin); Shell 20 (medium, up to 21 pin); Shell 24 (large, 12+ pin); Size M (SEACON MIN-M, 26 pin) |
| Pin count | Match to cable conductor count; select next size up if adding spares |
| Connector type | CCP for cable-to-cable or cable-to-equipment; BCR/FCR for panel/bulkhead mount; PBOF for extreme pressure; RA for right-angle installations; Dummy for connector protection |
| Voltage and current | Shell 15 (2-4 pin): 10 A/contact; Shell 15 (5+ pin): 10 A/contact; Shell 20: 10 A/contact; Shell 24: 5 A/contact |
| EO connectors | Select IE-series (2 or 4 channel) for optical data links; specify SM for runs >100 m, MM for shorter runs |
| PBOF requirement | Use 55P1-1508 PBOF variant when open-face or connector boot cannot be rated for ambient sea pressure (very deep or unusual umbilical designs) |
| Dummy plugs | Always install a dummy plug on unmated bulkhead or cable connectors before deployment to protect contacts and sealing faces |
| Custom requirements | Contact for non-standard pin counts, body materials, or pressure test certifications |
Frequently Asked Questions
Q: Is the MINM-FCR compatible with original Burton 55-series connectors?
A: Yes — it is dimensionally compatible with the referenced OEM standard for direct field replacement.
Q: What is the maximum operating depth?
A: Mated pressure is 690 Bar (10,000 psi) (approximately 69 m depth). Open-face rating is 480 Bar (7,000 psi).
Q: How many times can the connector be mated?
A: The MINM-FCR is rated for >500 wet-mate cycles. Inspect and clean contacts every 50 cycles or annually.
Q: What voltage and current does the connector support?
A: 600 V DC/AC rms, 5 A per contact (130 A (26 pin total) total connector limit). Both power and signal circuits can share the same multi-pin connector.
Q: Is a locking sleeve required?
A: Yes — always install the POM or SS locking sleeve after mating and before deployment. Never deploy without the locking sleeve engaged; it prevents accidental unmating under cable tension or sea-state vibration.
Q: Can I mix connector brands (e.g. RV Power Group plug with another brand bulkhead)?
A: Yes — within the referenced standard, connectors from compatible manufacturers mate correctly. Verify thread and contact gender before installation.
Q: What materials are available for the shell and coupling nut?
A: 316 Stainless Steel is the standard. Titanium is available on request for weight-sensitive or corrosion-critical applications. Anodised aluminium is available for above-water or shallow-water applications.
Q: Are pressure test certificates available?
A: Yes — batch or per-unit hydrostatic pressure test certificates can be provided for programme QA requirements.
Q: What cleaning and maintenance is required?
A: Before mating: rinse with clean water, inspect contacts for corrosion or debris, apply a thin layer of silicone grease to O-rings. After deployment: rinse with fresh water, cap unused connectors, and store in a clean dry environment. Replace O-rings if cracked or compressed permanently.
Q: Can I order custom cable assemblies with these connectors?
A: Yes. RV Power Group supplies factory-terminated cable assemblies with specified cable type, length, shielding, and lead configuration.
Installation, Mating & Maintenance Guidelines
Pre-Deployment Inspection
(1) Visually inspect all contacts for corrosion, deformation, or debris. (2) Check O-rings for cuts, abrasion, or permanent set — replace if in doubt. (3) Apply fresh silicone grease to O-ring surfaces. (4) Confirm locking sleeve moves freely and engages positively. (5) Remove protective caps from both connector halves immediately before mating — minimise air exposure time on flooded dummy plug sockets. (6) If using a PBOF variant, verify oil fill port is sealed and oil level is correct before deployment.
Mating Procedure
(1) Align guide pins/key and insert plug into bulkhead/receptacle with a smooth single-stroke motion. (2) Thread coupling nut by hand until finger-tight. (3) Slide locking sleeve forward until it clicks and locks over the coupling nut. (4) Verify lock by attempting to rotate coupling nut rearward — it should not move when sleeve is engaged. (5) On hybrid EO connectors, verify electrical continuity on power contacts before descent. (6) Log the mating cycle count if operating close to the rated 500-cycle limit.
Storage & Long-Term Maintenance
Store all connectors with protective caps installed in a clean, dry, UV-shaded environment. Flush with fresh water after every seawater exposure. Lubricate O-rings before storage if unit will not be deployed within 30 days. Inspect gold-plated contacts annually — light tarnish is acceptable, pitting or green corrosion requires contact replacement. Return to RV Power Group for factory refurbishment if contact resistance exceeds 0.05 Ω on any circuit. Always document the mating history for programme traceability.
